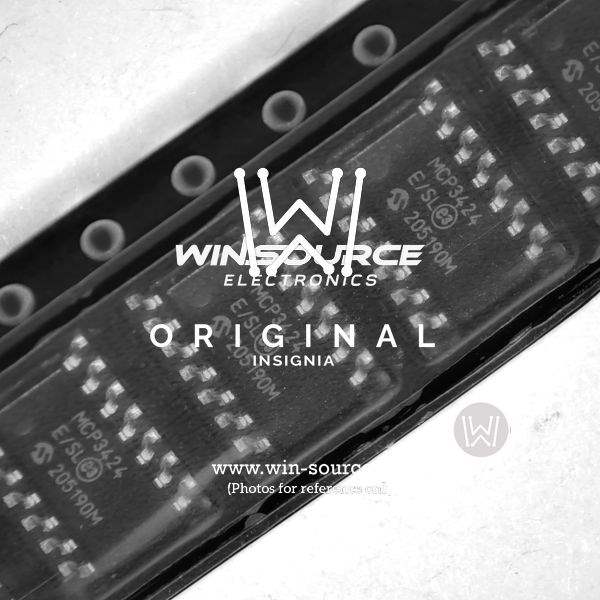

The MCP3424-E/SL is a high-precision, low-power, four-channel analog-to-digital converter (ADC) from Microchip Technology. It is a versatile component that is part of the MCP342X series, known for its exceptional performance in a wide range of applications including industrial, automotive, and consumer electronics.

Key Features:

• Resolution: The MCP3424-E/SL offers 18-bit resolution, ensuring high accuracy and fine detail in measurement applications.
• Channel Count: With four fully differential input channels, it allows for multiple signal acquisitions, making it ideal for complex systems.
• Programmable Sample Rates: Users can select from several sample rates, including 3.75 SPS (samples per second) to 240 SPS, to balance between speed and power consumption based on application needs.
• On-Board Voltage Reference: The built-in 2.048V reference voltage provides a stable measurement base, which can be a critical feature for precision applications.
• Low Current Consumption: With a typical current consumption of just 135 µA, the MCP3424-E/SL is suitable for battery-operated devices where power efficiency is crucial.
• I²C Interface: The device features an I²C-compatible serial interface, allowing for simple integration into most microcontroller-based systems with minimal pin count.
• Extended Temperature Range: It is operational over an industrial temperature range of -40°C to +125°C, making it reliable in harsh environments.
• Programmable Gain Amplifier (PGA): The integrated PGA offers gains of 1, 2, 4, or 8 before the analog-to-digital conversion, enhancing the flexibility and sensitivity of the device.
• Small Form Factor: Housed in a 10-MSOP package, the MCP3424-E/SL saves valuable board space without compromising on functionality.

Applications:

The MCP3424-E/SL is well-suited for a variety of applications, including:

• Portable instrumentation
• Temperature sensing with RTDs or thermocouples
• Industrial process control
• Battery fuel gauges and monitoring
• Data acquisition systems

In summary, the MCP3424-E/SL from Microchip Technology is a robust and reliable ADC solution that offers high accuracy, multiple channels, and low power consumption, all in a compact package. It is an excellent choice for engineers and designers looking to enhance their system's performance with a precision analog-to-digital conversion component.
