Microchip Technology's LAN8710A-EZK-TR Ethernet Transceiver

The LAN8710A-EZK-TR is a high-performance, small-footprint, low-power 10BASE-T/100BASE-TX Ethernet transceiver designed by Microchip Technology. This device is specifically tailored for power-sensitive applications such as embedded systems, consumer electronics, and industrial automation. With an emphasis on reliability and efficiency, the LAN8710A-EZK-TR offers a comprehensive solution for network connectivity.

The transceiver supports both full-duplex and half-duplex operation at 10 and 100 Mbps. It incorporates a range of features to enhance performance, including auto-negotiation to automatically select the highest link-up speed (10/100 Mbps) and duplex (half/full). Additionally, the LAN8710A-EZK-TR supports automatic polarity correction, wave-shaping, and link integrity test functions, which ensure robust and reliable communication over the network.

One of the standout features of the LAN8710A-EZK-TR is its low power consumption, which is critical for battery-powered and energy-efficient applications. The device also includes an energy detection mode that enables further power savings when network traffic is low or absent without sacrificing the ability to respond quickly to network activity.

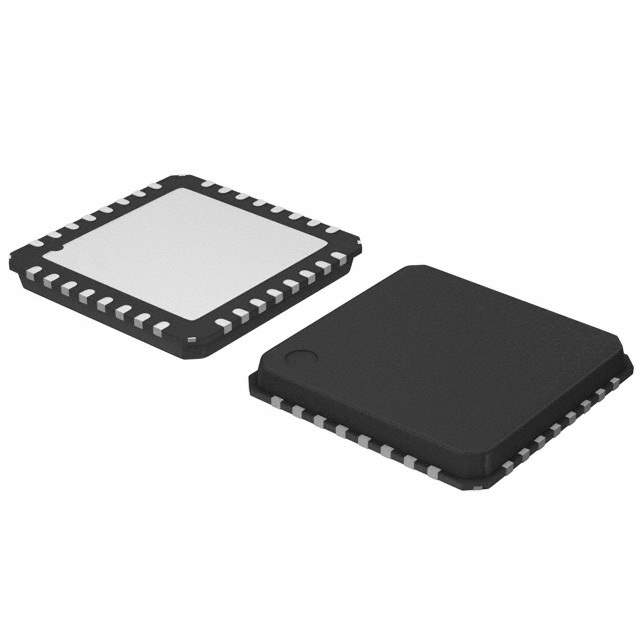

The LAN8710A-EZK-TR is available in a compact 32-pin QFN package, making it an ideal choice for space-constrained designs. It is compliant with the IEEE 802.3/802.3u standards and includes a HP Auto-MDIX support that allows the use of direct connect or cross-over LAN cables.

For ease of integration, the LAN8710A-EZK-TR is compatible with the industry-standard MII (Media Independent Interface) and RMII (Reduced Media Independent Interface), providing flexibility in connection with MAC (Media Access Control) controllers. The device also supports both 1.8V and 3.3V digital I/O, adding to its versatility in different system environments.

Overall, the LAN8710A-EZK-TR from Microchip Technology is a reliable and cost-effective solution for designers looking to implement Ethernet connectivity in their products. Its robust feature set and compliance with Ethernet standards make it a suitable choice for a wide range of applications.
