Microchip Technology KSZ8863RLL Integrated Ethernet Switch

The Microchip Technology KSZ8863RLL is a highly integrated Ethernet switch tailored for cost-sensitive applications that require a small footprint and minimal power consumption. This robust switch is part of Microchip's KSZ product line, designed to offer reliable performance for networked devices.

Key Features

• Port Configuration: The KSZ8863RLL features a 3-port switch with two 10/100BASE-TX ports and one 100BASE-FX or MII/RMII port, providing versatile connectivity options for various network configurations.
• Advanced Switching Capabilities: It supports a range of networking protocols and features, including auto-negotiation, auto MDI/MDIX crossover, and IEEE 802.1Q VLAN support, enabling efficient network traffic management and segmentation.
• Low Power Consumption: Designed with power-saving in mind, the device offers a "green" Ethernet mode that reduces power consumption based on cable length and link status, making it an eco-friendly choice for power-sensitive designs.
• Performance: The KSZ8863RLL boasts non-blocking switch fabric, ensuring fast data processing and transfer rates, which is essential for maintaining high network performance and reducing bottlenecks.
• Quality of Service (QoS): With support for QoS features, including four priority queues per port and IEEE 802.1p tag-based priority, this switch ensures that time-sensitive data like voice and video are prioritized over other types of network traffic.

Applications

The KSZ8863RLL is ideal for a variety of applications, including:

• VoIP phones and adapters
• IP Cameras
• Wireless access points
• Home network equipment
• Industrial control systems

Easy Integration

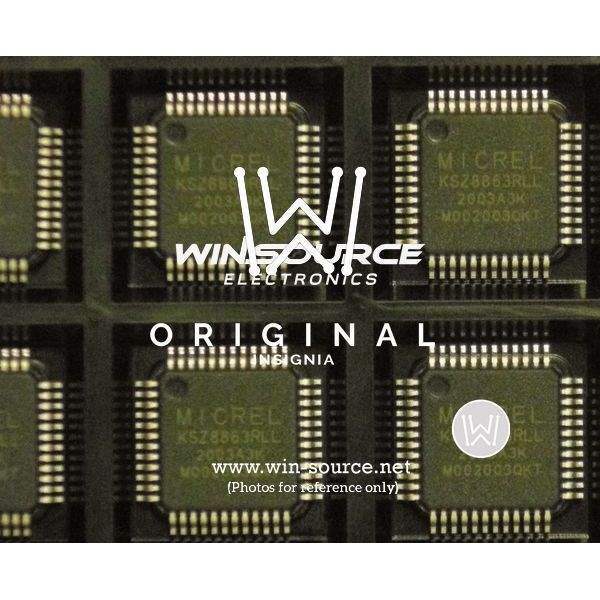

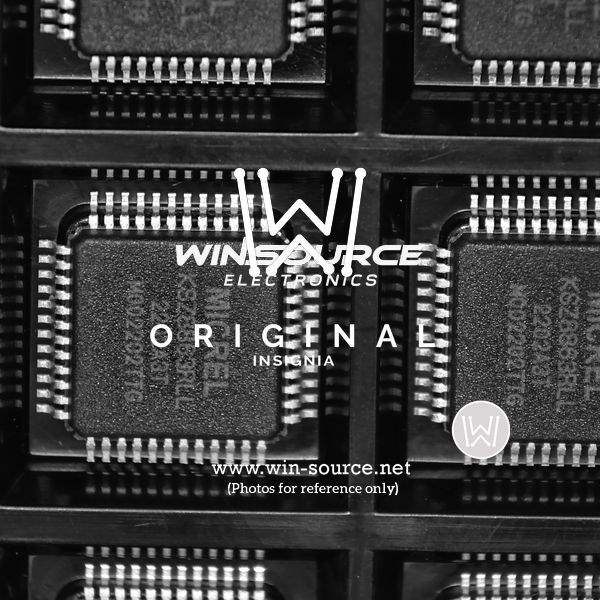

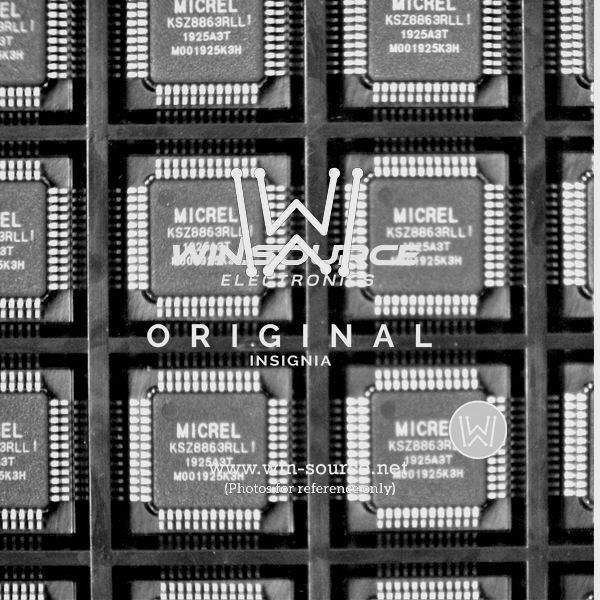

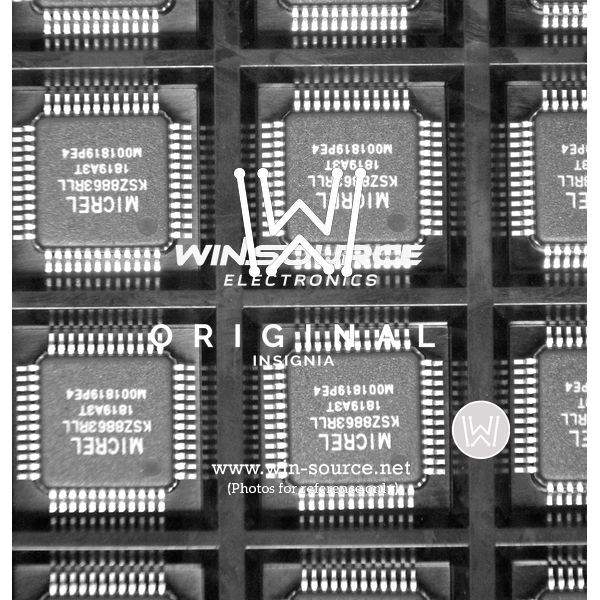

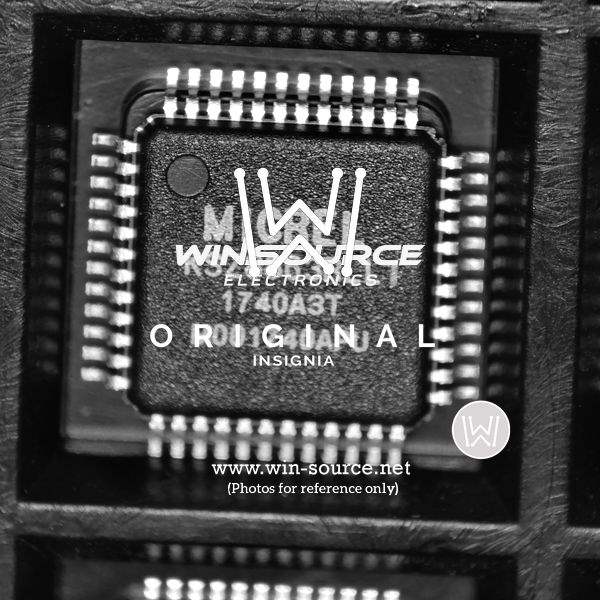

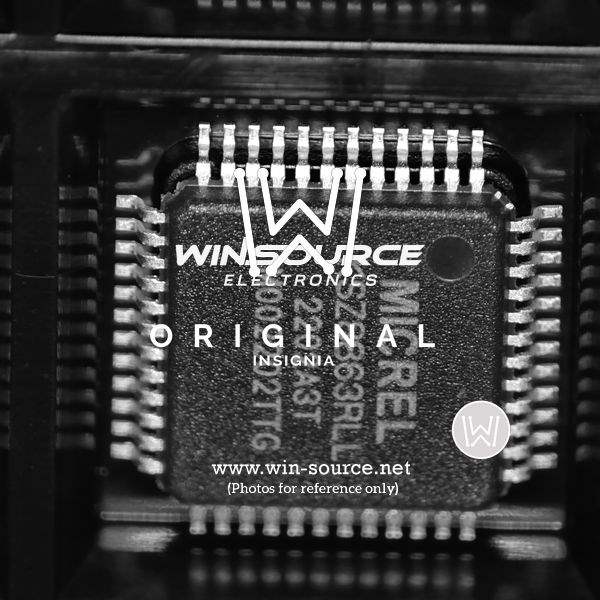

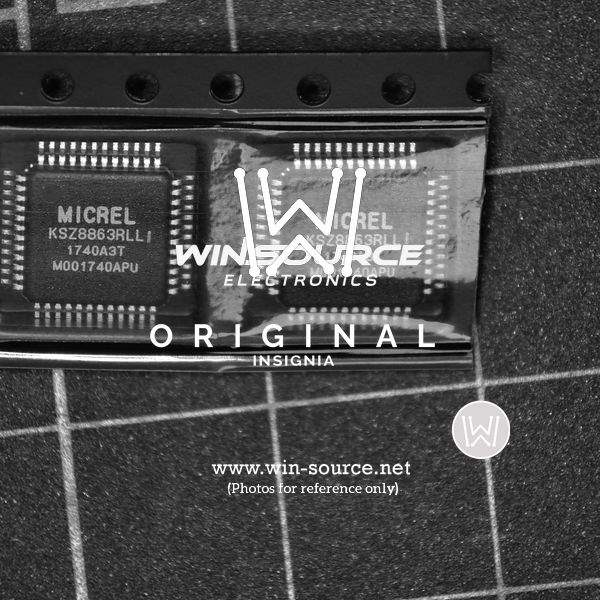

With its compact LQFP-48 package, the KSZ8863RLL can be easily integrated into space-constrained designs. Additionally, its comprehensive feature set and ease of use make it an excellent choice for developers looking to implement a reliable network interface with minimal development time.
