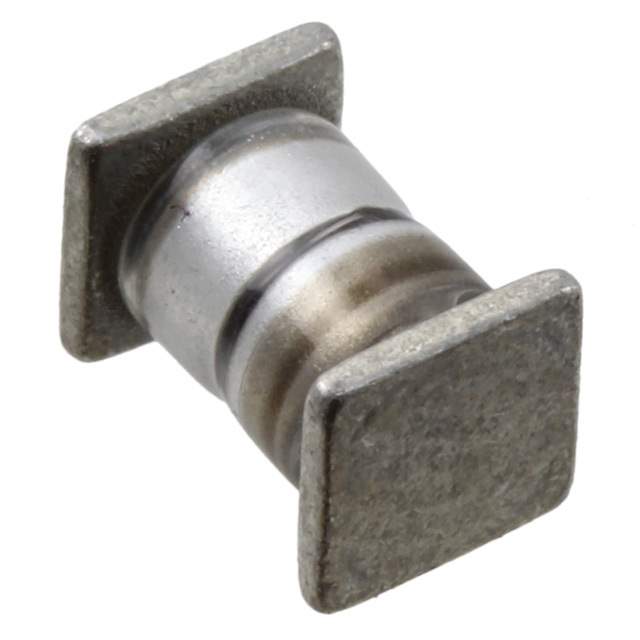

Product Overview: JANTX1N5822US/TR by Microchip Technology

The JANTX1N5822US/TR is a highly reliable Schottky barrier rectifier designed and manufactured by Microchip Technology, a leader in the field of microcontroller and analog semiconductors. This component is specifically engineered to meet the stringent requirements of military and aerospace applications, ensuring performance and durability in the most demanding environments.

Key Features

• Voltage Rating: The JANTX1N5822US/TR offers a forward voltage drop of 40V, making it suitable for a variety of power conversion applications within its voltage range.
• Current Capacity: With a forward current rating of up to 3A, this rectifier can handle significant power levels, essential for high-reliability systems.
• High-Temperature Operation: Designed to withstand extreme temperatures, it operates efficiently over a wide range of temperatures, typically from -65°C to 175°C.
• Low Forward Voltage Drop: The low forward voltage drop minimizes power loss and improves efficiency, which is critical in power-sensitive designs.
• Fast Switching Speed: Its fast switching capability ensures minimal losses during power conversion, which is vital for high-frequency applications.
• Hermetically Sealed: The device is hermetically sealed, offering protection against moisture and other environmental contaminants.
• Military Standards: It meets the JANTX level specifications of the MIL-PRF-19500 military standards, signifying its suitability for the most rigorous military applications.

Applications

The JANTX1N5822US/TR is ideal for a range of mission-critical applications, including:

• Power supplies in military and aerospace equipment
• High-reliability commercial systems
• Switching power supplies
• Converters and inverters
• Freewheeling diodes in various applications

Microchip Technology's commitment to quality ensures that the JANTX1N5822US/TR Schottky barrier rectifier is a dependable choice for designers seeking components that must perform without fail under the most challenging conditions. By integrating this rectifier into their designs, engineers can benefit from reduced system downtime and enhanced reliability, which are paramount in critical applications.
