JAN1N6470 Microchip Technology – Price, Stock & Datasheet

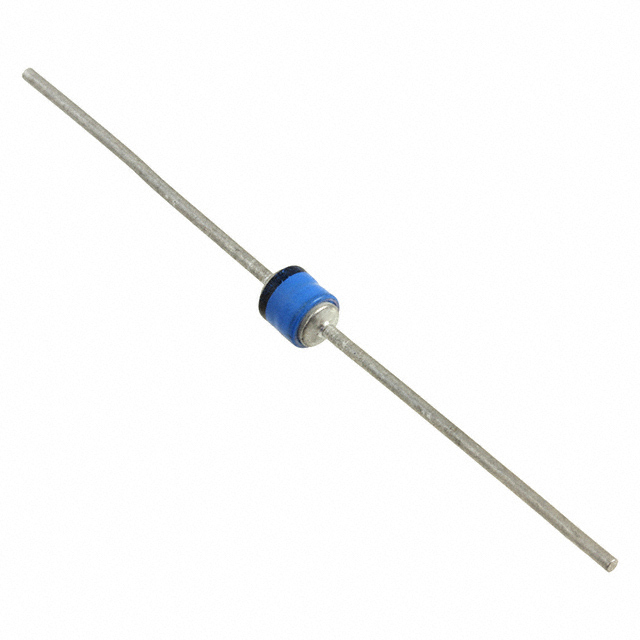

Same model may have multiple batches, images only for reference.

JAN1N6470

Part No JAN1N6470
Manufacturer Microchip Technology
Catalog TVS - Diodes
Description 11V Clamp 775A (8/20µs) Ipp Tvs Diode Through Hole Axial
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Mfr Microchip Technology
Packaging Bulk
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 6V
Voltage - Breakdown (Min) 6.5V
Voltage - Clamping (Max) @ Ipp 11V
Current - Peak Pulse (10/1000µs) 775A (8/20µs)
Power - Peak Pulse 1500W (1.5kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 175°C (TJ)
Grade Military
Qualification MIL-PRF-19500/552
Mounting Type Through Hole
Package / Case G, Axial
Supplier Device Package Axial
Base Product Number 1N6470
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1480052-JAN1N6470
Ultra Librarian 3D Model Ultra Librarian JAN1N6470 CAD Model
