Microchip Technology DSPIC33EP16GS502-I/MX Product Overview

The DSPIC33EP16GS502-I/MX is a high-performance, 16-bit Digital Signal Controller (DSC) from the renowned manufacturer, Microchip Technology. This advanced microcontroller unit (MCU) seamlessly blends the control features of a microcontroller with the computational capabilities of a digital signal processor to form an ideal solution for a wide array of applications that require advanced control algorithms and high-speed data processing.

Key Features

• Core: The DSPIC33EP16GS502-I/MX is built on a dsPIC33E core, which operates at a maximum frequency of 70 MHz. The core is designed to execute digital signal processing instructions efficiently, making it perfect for applications that need fast and accurate control.
• Memory: It comes with 16 KB of RAM and 22 KB of flash memory, providing ample space for complex algorithms and program storage without the need for external memory components.
• Dual Partition Flash with Live Update: This feature allows for firmware updates with minimal interruption, ensuring reliable and continuous operation even during software upgrades.
• High-Resolution PWM: The device includes advanced PWM modules that support high-resolution outputs, which are pivotal for precise motor control and power conversion applications.
• Robust Peripheral Set: A rich set of peripherals including ADCs, DACs, UARTs, SPI, and I2C modules, among others, provides the flexibility to interface with a wide range of sensors, actuators, and communication modules.
• Temperature Range: It operates over an extended industrial temperature range from -40°C to +125°C, making it suitable for harsh environments.

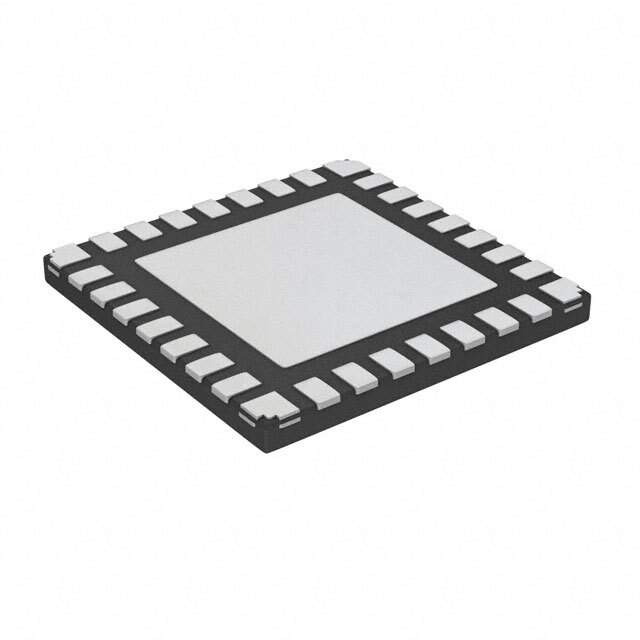

• Package: The DSPIC33EP16GS502-I/MX comes in a 28-pin QFN package, which is ideal for space-constrained applications.

Applications

The versatility of the DSPIC33EP16GS502-I/MX makes it an excellent choice for a myriad of applications, including but not limited to:

• Advanced motor control
• Power supply and conversion
• Audio applications and signal processing
• Industrial automation and control systems
• Automotive and transportation systems

With its powerful core, extensive memory, and sophisticated peripherals, the DSPIC33EP16GS502-I/MX from Microchip Technology stands out as a robust and flexible solution for designers looking to push the boundaries of what's possible in embedded systems control and signal processing.
