Microchip Technology's DSC6021MI2A-005PT: A High-Performance MEMS Oscillator

The DSC6021MI2A-005PT is a state-of-the-art silicon MEMS (Micro-Electro-Mechanical Systems) oscillator from Microchip Technology, designed to deliver exceptional timing solutions for a wide array of electronic applications. This compact and highly reliable component is perfect for replacing traditional crystal oscillators in many modern devices, offering enhanced stability, precision, and robustness.

Key Features

• Frequency Range: The DSC6021 series provides a stable frequency output of 5 MHz, which is ideal for various digital applications that require a precise clock signal.
• Supply Voltage: Operating at a low supply voltage of 1.8V to 3.3V, this oscillator is suitable for battery-powered and portable devices, ensuring energy efficiency without compromising performance.

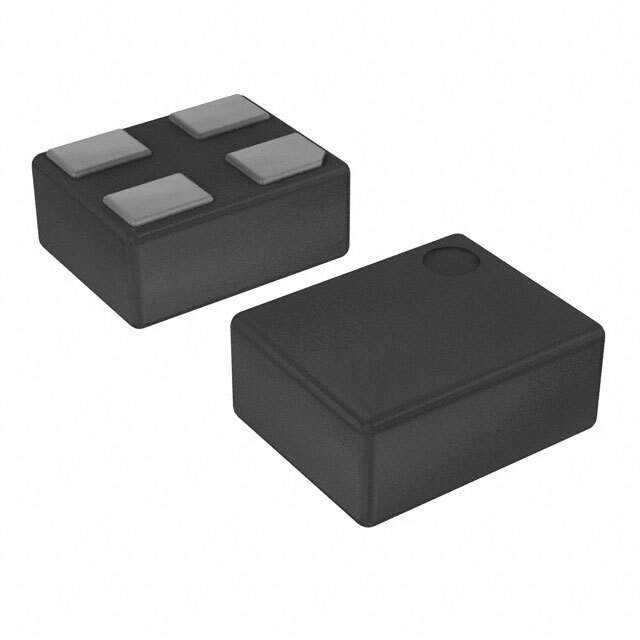

• Size and Packaging: With its ultra-compact 2.5mm x 2.0mm footprint, the DSC6021MI2A-005PT comes in a 4-SMD, no-lead package, which is optimal for space-constrained applications.
• Stability and Accuracy: Offering excellent frequency stability of ±25 ppm over the industrial temperature range (-40°C to +85°C), this oscillator maintains its accuracy under varying environmental conditions.
• Output Type: The oscillator provides a CMOS output, ensuring compatibility with most digital circuits and ease of integration into a variety of electronic systems.

Applications

The versatility of the DSC6021MI2A-005PT makes it suitable for a broad spectrum of applications, including:

• Internet of Things (IoT) devices
• Wearable technology
• Wireless communication systems
• Portable consumer electronics
• Industrial controls and automation
• Medical monitoring equipment

Advantages of MEMS Technology

Microchip's MEMS oscillators, like the DSC6021MI2A-005PT, offer several advantages over traditional quartz crystal oscillators. They are less susceptible to mechanical shock and vibration, provide better reliability and longevity, and enable faster start-up times. Additionally, MEMS oscillators contribute to the miniaturization of electronic devices due to their small form factor.

With the DSC6021MI2A-005PT, Microchip Technology continues to innovate in the field of timing solutions, offering designers a high-performance, space-efficient, and energy-conscious component that meets the demands of modern electronic systems.
