Same model may have multiple batches, images only for reference.

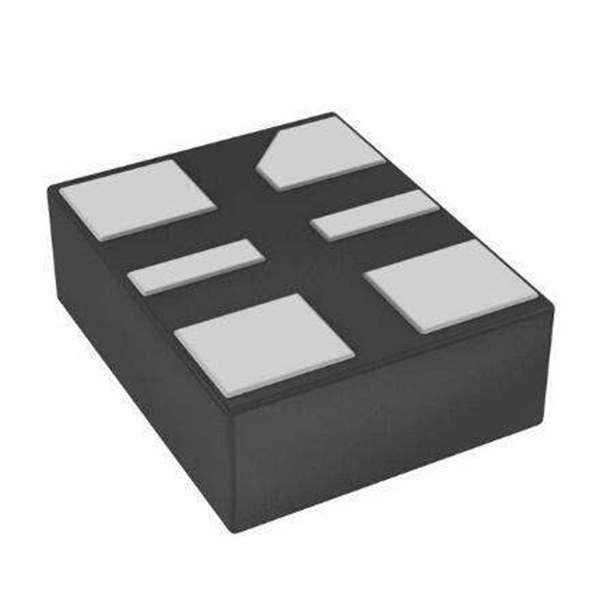

DSC2311KM2R0005TMicrochip Technology
Same model may have multiple batches, images only for reference.

DSC2311KM2R0005T

Part No DSC2311KM2R0005T
Manufacturer Microchip Technology
Catalog Pin Configurable/Selectable Oscillators
Description MEMS OSC XO 2.25V-3.6V 6VDFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Microchip Technology
Category Crystals, Oscillators, Resonators Pin Configurable/Selectable Oscillators
Packaging  Tape & Reel (TR)
Type XO (Standard)
Frequency - Output 1 20MHz
Function Enable/Disable
Voltage - Supply 2.25V ~ 3.6V
Frequency Stability ±25ppm
Operating Temperature -55°C ~ 125°C
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height 0.035" (0.90mm)
Package / Case 6-VDFN
Current - Supply (Disable) (Max) 23 mA
Win Source Part Number WS1211299-DSC2311KM2R0005T
Ultra Librarian 3D Model Ultra Librarian DSC2311KM2R0005T CAD Model

Description

The DSC2311 is a crystal-less™ clock generator that is factory-configurable to simultaneously output two separate frequencies from 2.3 MHz to 170 MHz. The clock generator uses proven silicon MEMS technology to provide low jitter and high frequency stability across a wide range of supply voltages and temperatures. By eliminating the external quartz crystal, crystal-less clock generators significantly enhance reliability and accelerate product development, while meeting stringent clock performance criteria for a variety of consumer electronics, communications, and storage applications.
