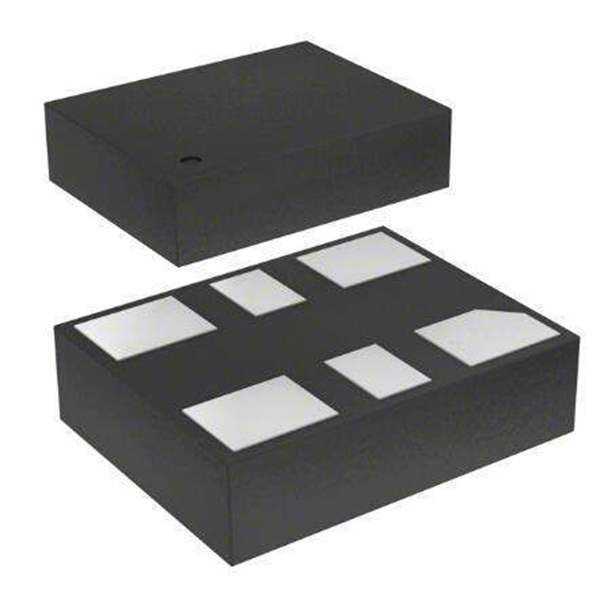

DSC1224DL1-100M0000 Microchip Technology
Same model may have multiple batches, images only for reference.

DSC1224DL1-100M0000

Part No DSC1224DL1-100M0000
Manufacturer Microchip Technology
Catalog Oscillators
Description OSC MEMS SMD HIGH PERFORMANCE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Microchip Technology
Category Crystals, Oscillators, Resonators Oscillators
Packaging  Tube
Part Status Active
Base Resonator MEMS
Frequency 100 MHz
Function Enable/Disable
Voltage - Supply 2.25V ~ 3.63V
Frequency Stability ±50ppm
Operating Temperature -40°C ~ 105°C
Current - Supply (Max) 40mA (Typ)
Package / Case 6-VDFN
Win Source Part Number WS1211278-DSC1224DL1-100M0000
Ultra Librarian 3D Model Ultra Librarian DSC1224DL1-100M0000 CAD Model

Description

100 MHz XO (Standard) HCSL Oscillator 2.25V ~ 3.63V Enable/Disable 6-VDFN
