Product Overview: DSC1123CI2-156.2500T from Microchip Technology

The DSC1123CI2-156.2500T is a high-performance, precision oscillator designed and manufactured by Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This particular model is part of Microchip's extensive range of MEMS clock oscillators that are engineered to provide reliable and stable frequency sources for a wide array of electronic applications.

Key Features

• Frequency: The oscillator operates at a fixed frequency of 156.2500 MHz, which is ideal for high-speed digital systems that require precise timing for data transfer and signal processing.

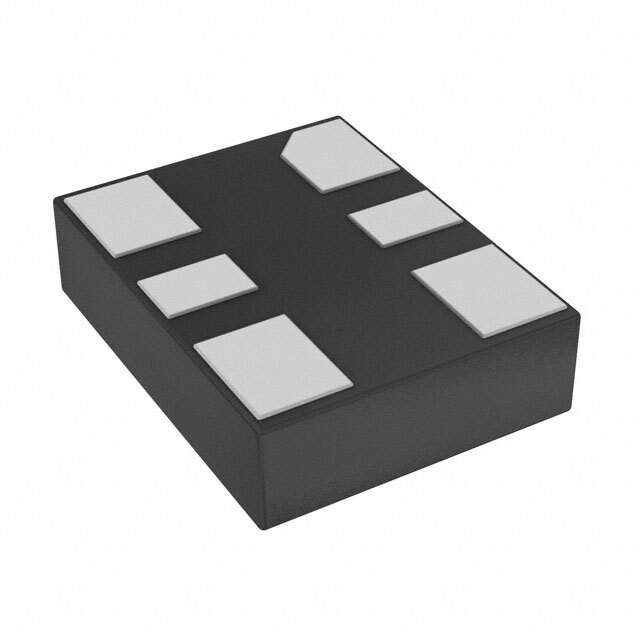

• Package Type: It comes in a compact 6-pin DFN (Dual Flat No-lead) package, with a footprint of 3.2 x 2.5 mm, making it suitable for space-constrained applications.
• Supply Voltage: The DSC1123CI2-156.2500T is designed to work with a supply voltage of 2.25V to 3.63V, offering flexibility for different power supply designs and ensuring low power consumption.
• Stability: It features superb frequency stability, which is crucial for maintaining the integrity of the system clock in various environmental conditions.
• Output Type: The device provides a CMOS/LVPECL output, ensuring compatibility with a wide range of digital circuits.
• Operating Temperature Range: This oscillator can operate over an industrial temperature range from -40°C to +85°C, making it robust for use in harsh environments.

Applications

The DSC1123CI2-156.2500T is versatile and can be used in various applications, including but not limited to:

• Networking (routers, switches, network cards)
• Data communication
• Storage systems
• High-speed computing
• Telecommunication equipment

Microchip Technology's commitment to quality ensures that the DSC1123CI2-156.2500T oscillator provides the performance and reliability required for today's demanding electronic systems. Whether you're designing for consumer electronics or industrial applications, this oscillator is an excellent choice for maintaining precise timing and synchronization.

Ordering and Availability

The DSC1123CI2-156.2500T is available for order from Microchip Technology's official website or through authorized distributors. Detailed datasheets, technical specifications, and additional resources are also accessible to assist with the integration of this oscillator into your design.
