Microchip Technology ATTINY1614-SSN Microcontroller

The ATTINY1614-SSN is a high-performance, low-power AVR® RISC-based microcontroller from Microchip Technology, designed to offer a perfect blend of power efficiency and processing capability. This microcontroller is a member of the tinyAVR® 1-series, which is renowned for its versatility in various applications, ranging from simple to complex embedded systems.

Key Features

• Advanced RISC Architecture: With its powerful 8-bit CPU, the ATTINY1614-SSN provides a highly efficient instruction set and architecture that allows for fast execution of instructions in fewer clock cycles.
• Memory Capacity: It comes equipped with 16KB of in-system self-programmable flash memory, 256B EEPROM, and 2KB SRAM, providing ample space for application code and data storage.
• Peripherals: A rich set of peripherals enhances its capabilities, including a 12-channel 10-bit ADC, a 10-bit DAC, multiple communication interfaces (UART, SPI, and I2C), and configurable custom logic blocks.
• Power Efficiency: Operating in a voltage range of 1.8V to 5.5V, the ATTINY1614-SSN is designed for power-sensitive applications, with features like Power-down mode with wake-up from Watchdog Timer and multiple sleep modes.

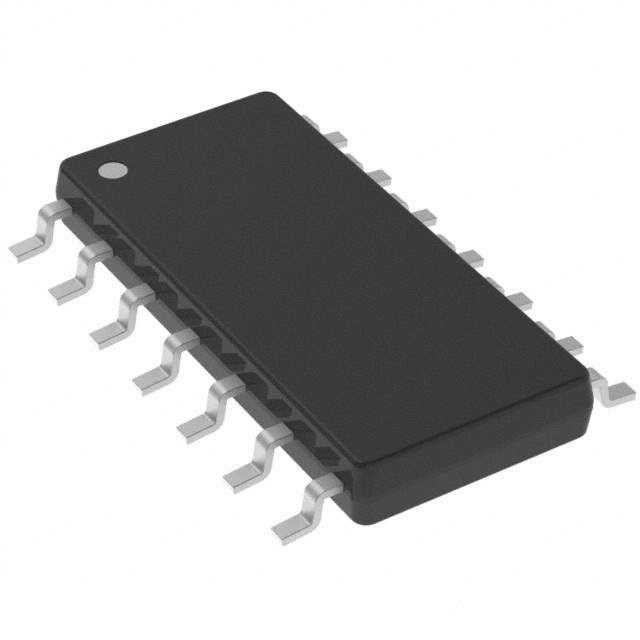

• Packages: The microcontroller is available in a compact 14-pin SOIC package, making it suitable for space-constrained applications.
• Temperature Range: It is operational over an industrial temperature range of -40°C to 85°C, ensuring reliability in harsh environments.

Applications

The ATTINY1614-SSN is ideal for a wide array of applications due to its small size, low power consumption, and high performance. It is particularly well-suited for:

• Wearables and portable electronics
• Home automation and smart sensors
• Battery-operated devices
• Industrial control systems
• Automotive applications

With its robust feature set and flexibility, the ATTINY1614-SSN from Microchip Technology is an excellent choice for designers looking to create sophisticated projects that require a microcontroller that is both powerful and energy-efficient.
