Microchip Technology ATSAMD20E15A-AN Microcontroller

The ATSAMD20E15A-AN is a high-performance, low-power microcontroller from Microchip Technology, designed to offer a balance between power efficiency and processing capability. This microcontroller is based on the ARM Cortex-M0+ processor, which operates at a maximum frequency of 48MHz. It is well-suited for a variety of applications, including industrial control systems, consumer electronics, and the Internet of Things (IoT).

Key Features:

• Core: ARM Cortex-M0+ CPU running at up to 48MHz
• Memory: 32KB of in-system self-programmable Flash, 4KB of SRAM
• I/O Pins: 32 programmable I/O pins for versatile peripheral functions
• Communication Interfaces: I2C, SPI, and USART interfaces for serial communication
• Power Efficiency: Supports Idle and Standby sleep modes to conserve power
• Analog Features: 10-bit ADC with 12 channels, one 10-bit DAC
• Timers: Three 16-bit Timer/Counters, one 32-bit Real-Time Timer, and a Watchdog Timer
• Supply Voltage: 1.62V to 3.63V power supply range
• Temperature Range: -40°C to +85°C operational temperature range

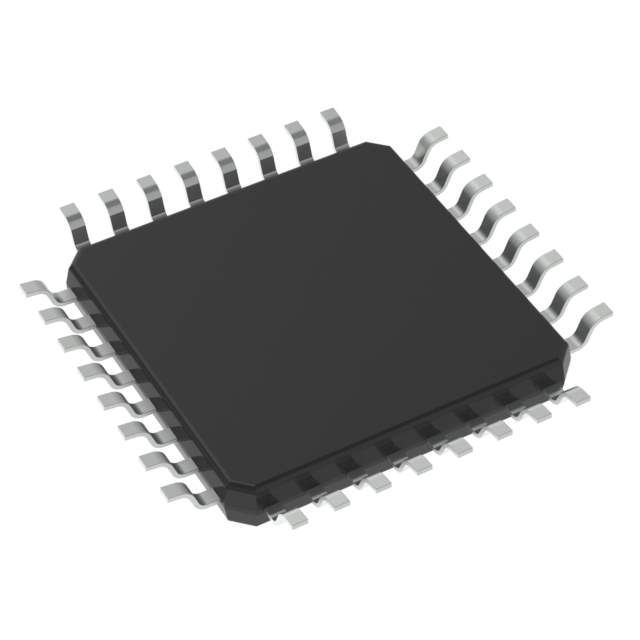

• Packaging: Available in a 32-pin TQFP package

Advanced Peripherals and Integration:

The ATSAMD20E15A-AN microcontroller integrates several advanced peripherals, including multiple timers, real-time performance counters, and a variety of communication interfaces. This integration allows for flexible and advanced control in embedded systems while minimizing external component count, which can reduce overall system cost and complexity.

Applications:

With its robust feature set and versatile I/O options, the ATSAMD20E15A-AN is ideal for applications that require efficient power management without compromising on performance. These applications include but are not limited to portable medical devices, smart sensors, home automation, and battery-operated devices.

For developers, Microchip provides comprehensive software support, including the Atmel Studio IDE and the Atmel Software Framework (ASF), which contains pre-written drivers and code for rapid development. The ATSAMD20E15A-AN is also supported by a wide range of development tools and boards to assist in prototyping and testing.
