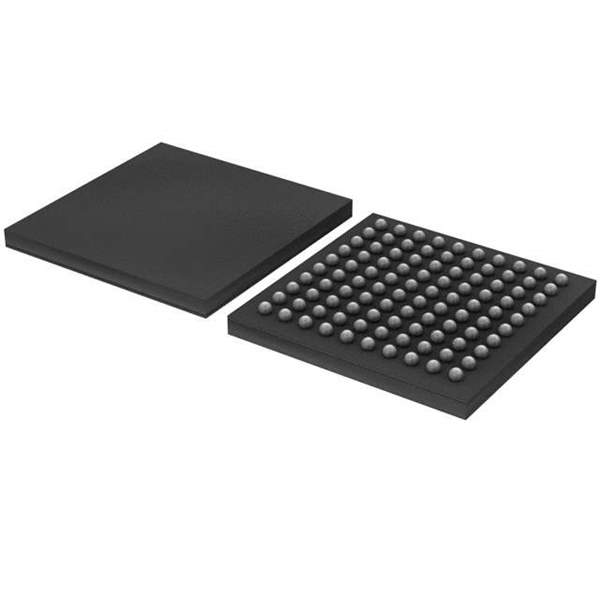

Microchip Technology's ATMEGA1280V-8CU Microcontroller
The ATMEGA1280V-8CU is a high-performance, low-power Atmel AVR 8-bit microcontroller from Microchip Technology, designed to offer a unique balance of power efficiency and processing capability. This microcontroller is built on the advanced RISC architecture, which enables the ATMEGA1280V-8CU to execute powerful instructions in a single clock cycle. This results in a throughput that approaches 1 MIPS per MHz, optimizing the power consumption versus processing speed ratio.
With its operating voltage ranging from 2.7V to 5.5V, the ATMEGA1280V-8CU is exceptionally versatile and can be used in various applications, from battery-operated devices to industrial control systems. It features a clock speed of 8 MHz, which provides a solid foundation for applications that require reliable timing and control.
The microcontroller comes equipped with an impressive 128KB of in-system self-programmable flash memory, 8KB RAM, and 4KB EEPROM. This generous memory allocation allows for the storage of complex programs and the retention of essential data even after power-off. Additionally, the device boasts a wide range of peripherals, including:
- 54 digital input/output pins (of which 15 can be used as PWM outputs)
- 16 analog inputs
- 4 UARTs (hardware serial ports)
- A 16 MHz crystal oscillator
- A USB connection
- A power jack
- An ICSP header
- A reset button
The ATMEGA1280V-8CU also supports various communication options, such as SPI and I2C, enabling seamless integration with a wide array of peripherals and devices. Its 10-bit A/D converter with up to 16 channels allows for accurate analog-to-digital conversion, which is crucial for sensor-driven applications.
For security and data integrity, the microcontroller includes features like watchdog timer, brown-out detection, and a full suite of programmable fuse and lock bits. Additionally, the ATMEGA1280V-8CU supports in-circuit debugging that allows for detailed observation of the microcontroller's internals during operation.
Whether you're designing an advanced robotic system or a power-sensitive IoT device, the ATMEGA1280V-8CU offers a reliable and flexible solution that can be tailored to meet the demands of your project.
