Microchip Technology ATF1508AS-10JC84 CPLD

The ATF1508AS-10JC84 is a high-performance, programmable logic device (PLD) from Microchip Technology's renowned Atmel ATF15xxAS series. This Complex Programmable Logic Device (CPLD) is designed to offer a versatile and efficient solution for a wide range of digital logic applications. With its advanced features and capabilities, the ATF1508AS-10JC84 is an ideal choice for designers looking to implement customizable logic without the cost and lead time associated with custom ASIC development.

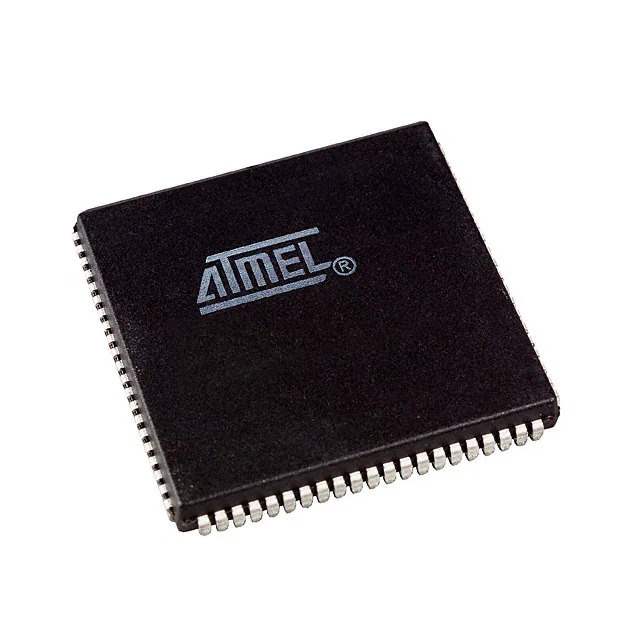

This CPLD features a dense 128 macrocell architecture and provides a maximum system speed of 10 ns, making it suitable for high-speed applications. The device is housed in an 84-pin PLCC (Plastic Leaded Chip Carrier) package, which is conducive to both space-saving and reliability in various environments.

The ATF1508AS-10JC84 boasts a user-configurable I/O architecture, with up to 68 user I/O pins that allow for a high degree of flexibility in interfacing with other components of a system. The device supports a wide voltage range, accommodating 5V systems, and providing a robust solution for mixed-voltage environments.

Programming the ATF1508AS-10JC84 is streamlined through industry-standard software tools, which simplifies the design process and accelerates time-to-market. The device also includes in-system programmability (ISP) via a JTAG interface, which allows for updates and reprogramming in the field without the need for additional hardware, thus reducing overall maintenance costs and downtime.

Microchip's ATF1508AS-10JC84 is not only powerful but also designed with power conservation in mind. It features low power consumption, which is critical for battery-operated and power-sensitive applications. Additionally, the device is characterized by its high reliability and long-term availability, which is a hallmark of Microchip's commitment to quality.

Whether you're designing for industrial control systems, automotive applications, telecommunications, or consumer electronics, the ATF1508AS-10JC84 offers a flexible and reliable solution that can adapt to the unique demands of your project.
