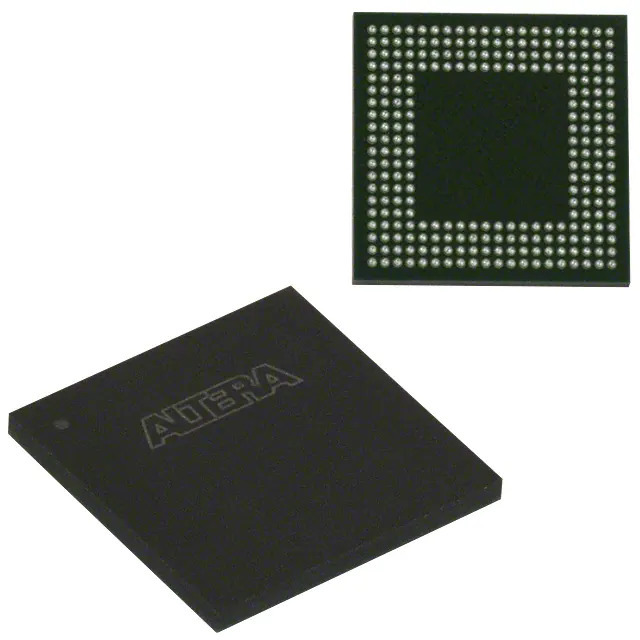

EPM1270GM256C5N Intel
Same model may have multiple batches, images only for reference.

EPM1270GM256C5N

Part No EPM1270GM256C5N
Manufacturer Intel
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description IC CPLD 980MC 6.2NS 256MBGA
Datasheet
EPM1270GM256C5N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - CPLDs (Complex Programmable Logic Devices)
Mfr Intel
Series MAX® II
Package Tray
Product Status Active
Programmable Type In System Programmable
Delay Time tpd(1) Max 6.2 ns
Voltage Supply - Internal 1.71V ~ 1.89V
Number of Logic Elements/Blocks 1270
Number of Macrocells 980
Number of I/O 212
Temperature Range - Operating 0°C ~ 85°C (TJ)
Mounting Type Surface Mount
Package / Case 256-TFBGA
Supplier Device Package 256-MBGA (11x11)
Base Product Number EPM1270
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A001A7A
HTSUS 8542.39.0001
Win Source Part Number 1378381-EPM1270GM256C5N
Ultra Librarian 3D Model Ultra Librarian EPM1270GM256C5N CAD Model

Description

The Intel MAX® II EPM1270GM256C5N is an active integrated circuit (IC) - embedded - CPLD (Complex Programmable Logic Device).

  • Operating Temperature: 0°C to 85°C (TJ)
  • Mounting Type: Surface Mount
  • Package: 256-TFBGA
  • Supplier Device Package: 256-MBGA (11x11)
  • Series: MAX® II
  • Number of I/O: 212
  • Number of Logic Elements/Blocks: 1270
  • Programmable In-System: Yes
  • Delay Time tpd(1) max: 6.2 ns
