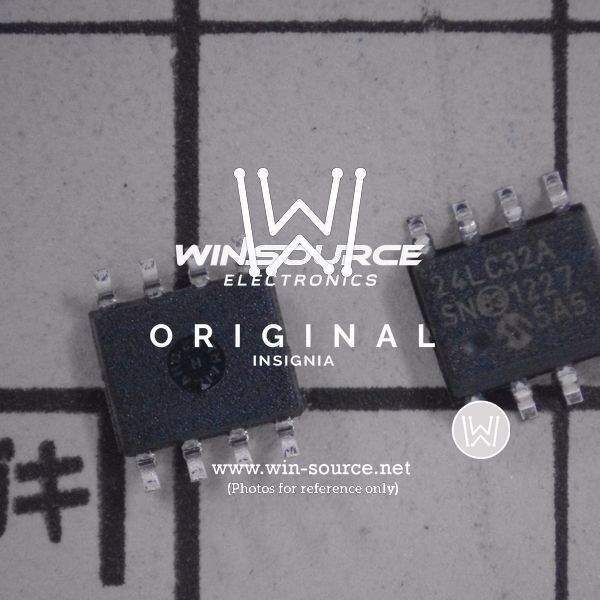

Microchip Technology's 24LC32A/SN EEPROM

The 24LC32A/SN is a 32Kbit Electrically Erasable PROM (EEPROM) device from Microchip Technology, designed for advanced data storage solutions. This EEPROM comes in a compact 8-pin SOIC (SN) package, making it suitable for space-constrained applications. It operates on a single supply voltage ranging from 2.5V to 5.5V, which allows for flexible integration into various system designs.

One of the key features of the 24LC32A/SN is its I²C-compatible (2-wire) serial interface, which facilitates easy and efficient communication with microcontrollers and processors. The device supports a data transfer rate of 400 kHz, enabling quick read and write operations, which is essential for performance-critical applications.

Microchip Technology's 24LC32A/SN offers a substantial amount of data storage, with a memory size of 32 kilobits, organized as 4,096 x 8 bits. This makes it an ideal choice for storing configuration parameters, small amounts of data, or for use in applications requiring non-volatile memory backup.

The device features a write protect pin (WP), providing hardware data protection. The write protection feature prevents accidental data overwriting and ensures the integrity of the data stored within the device. Additionally, the 24LC32A/SN has a built-in error correction code (ECC) logic, which enhances the reliability of the data being read from the EEPROM.

For applications requiring extended temperature ranges, the 24LC32A/SN operates over an industrial temperature range of -40°C to +85°C, ensuring stable performance under varying environmental conditions. This makes it suitable for industrial, automotive, and other demanding applications.

In summary, the Microchip Technology 24LC32A/SN EEPROM provides a robust and reliable non-volatile memory solution for a wide range of applications. Its small form factor, serial I²C interface, and advanced features such as write protection and ECC make it a versatile choice for designers looking to enhance their systems with secure and dependable data storage capabilities.
