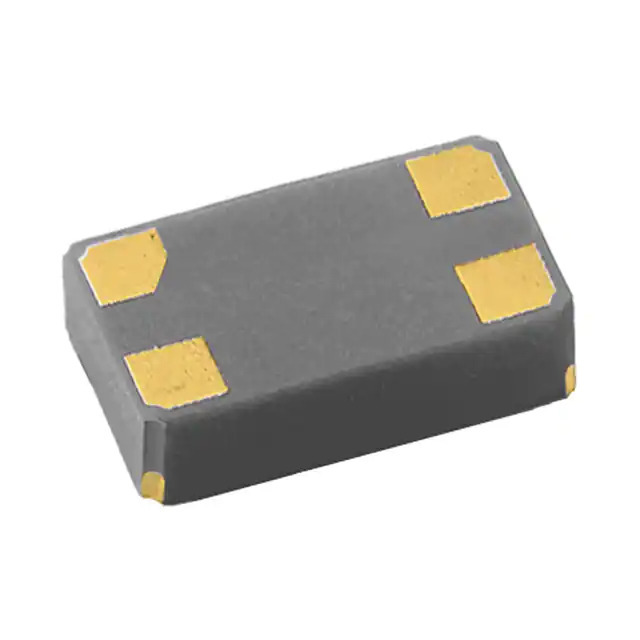

Same model may have multiple batches, images only for reference.
OM-7605-C8-32.768KHZ-20PPM-TA-QC Micro Crystal AG
Same model may have multiple batches, images only for reference.

OM-7605-C8-32.768KHZ-20PPM-TA-QC

Part No OM-7605-C8-32.768KHZ-20PPM-TA-QC
Manufacturer Micro Crystal AG
Catalog Oscillators
Description OSC XO 32.768KHZ SMD / 32.768 kHz XO (Standard) CMOS Oscillator 1.6V ~ 5.5V Enable/Disable 4-SMD, No Lead
Datasheet
OM-7605-C8-32.768KHZ-20PPM-TA-QC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Micro Crystal AG
Series OM
Package Tape & Reel
Product Status Active
Base Resonator Crystal
Type XO (Standard)
Frequency 32.768 kHz
Function Enable/Disable
Output CMOS
Voltage - Supply 1.6V ~ 5.5V
Frequency Stability ±20ppm @ 25°C
Absolute Pull Range (APR) -
Temperature Range - Operating -40°C ~ 85°C
Spread Spectrum Bandwidth -
Current - Supply (Max) 0.65µA
Ratings -
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height - Seated (Max) 0.028" (0.70mm)
Current - Supply (Disable) (Max) -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1362449-OM-7605-C8-32.768KHZ-20PPM-TA-QC
Ultra Librarian 3D Model Ultra Librarian OM-7605-C8-32.768KHZ-20PPM-TA-QC CAD Model

Description

The 1362449-OM-7605-C8-32.768KHZ-20PPM-TA-QC is an oscillator from the OM series by Micro Crystal AG.

  • Series: OM
  • Frequency: 32.768kHz
  • Temperature Range: -40°C to 85°C
  • Package/Case: 4-SMD, No Lead
  • Mounting Type: Surface Mount
  • Voltage Supply: 1.6V to 5.5V
  • Current Supply: 0.65µA (max)
  • Size: 0.079" L x 0.047" W (2.00mm x 1.20mm)
  • Height (Seated): 0.028" (0.70mm)
  • REACH: Compliant
  • ECCN: EAR99
  • Product Status: Active
