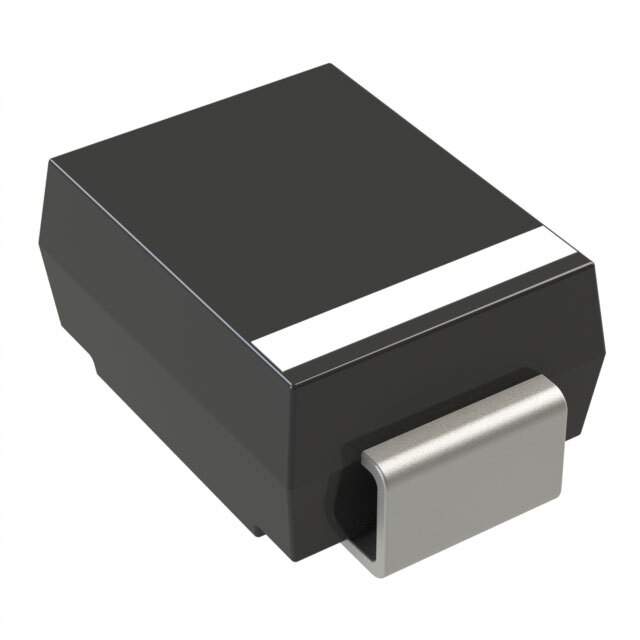

SMB5817

Part No SMB5817
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 20V 1A DO214AA / Diode Schottky 20 V 1A Surface Mount DO-214AA (SMB)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Micro Commercial Co
Package Tape & Reel (TR),Cut Tape (CT)
Product Status Obsolete
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 20 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 450 mV @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 20 V
Mounting SMD (SMT)
Package / Case DO-214AA, SMB
Supplier Device Package DO-214AA (SMB)
Operating Temperature - Junction -55°C ~ 125°C
Base Product Number SMB5817
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names SMB5817MSTR,SMB5817MSCT,SK12
Standard Package 3,000
Win Source Part Number 968648-SMB5817
Ultra Librarian 3D Model Ultra Librarian SMB5817 CAD Model

Description

The SMB5817 is a Schottky diode from Micro Commercial Co. that has a maximum DC reverse voltage of 20 V and an average rectified current of 1 A.

  • Product: SMB5817
  • Manufacturer: Micro Commercial Co.
  • Maximum DC Reverse Voltage: 20 V
  • Average Rectified Current: 1 A
  • Recovery Speed: Less than 500 ns
  • Forward Voltage: 450 mV @ 1 A
  • Reverse Leakage Current: 500 µA @ 20 V
  • Junction Temperature Range: -55°C to 125°C
  • Package: DO-214AA (SMB)
  • Applications: Rectification, freewheeling, and reverse polarity protection
