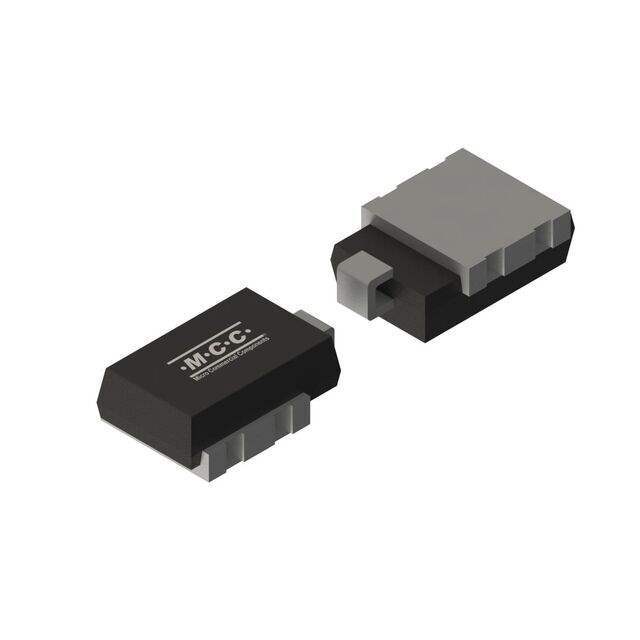

Same model may have multiple batches, images only for reference.
SM8S10AHE3-TP MCC (Micro Commercial Components)
Same model may have multiple batches, images only for reference.

SM8S10AHE3-TP

Part No SM8S10AHE3-TP
Manufacturer Micro Commercial Co
Catalog TVS
Description TVS DIODE 10VWM 17VC DO218AB
Datasheet
SM8S10AHE3-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection> Transient Voltage >Suppressors (TVS) TVS Diodes
Manufacturer MCC (Micro Commercial Components)
Packaging  Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 10V
Voltage - Breakdown (Min) 11.1V
Voltage - Clamping (Max) @ Ipp 17V
Current - Peak Pulse (10/1000µs) 388A
Ultra Librarian 3D Model Ultra Librarian SM8S10AHE3-TP CAD Model

Description

  • AEC-Q101 Qualified
  • Meet ISO 7637-2 5a/5b and ISO 16750 Load Dump Test (Varied by Test Condition)
  • Low Leakage Current
  • Glass Passivated Junction
  • Excellent Clamping Capability
  • Bi-directional Polarity
  • Epoxy Meets UL 94 V-0 Flammability Rating
  • Lead Free Finish/RoHS Compliant (Note1) ("P" Suffix Designates RoHS Compliant. See Ordering Information)
  • ESD protection of data lines in accordance with IEC 61000-4-2, ±30kV(Air),±30kV (Contact)
