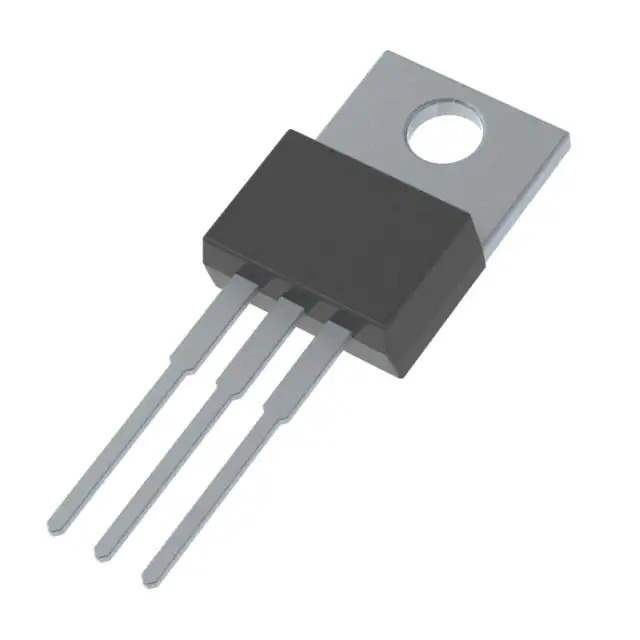

MBRL30300CT-BP Real Image
Same model may have multiple batches, images only for reference.

MBRL30300CT-BP

Part No MBRL30300CT-BP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Arrays
Description DIODE SCHOTTKY 30A 300V TO-220AB / Diode Array 1 Pair Common Cathode 300 V 30A Through Hole TO-220-3
Datasheet
MBRL30300CT-BP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr Micro Commercial Co
Package Tube
Diode Configuration 1 Pair Common Cathode
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 300 V
Current - Average Rectified (Io) (per Diode) 30A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 15 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 10 µA @ 300 V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Type Through Hole
Package / Case TO-220-3
Supplier Device Package TO-220AB
Base Product Number MBRL30300
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 1340757-MBRL30300CT-BP
Ultra Librarian 3D Model Ultra Librarian MBRL30300CT-BP CAD Model

Description

The MBRL30300 is a fast recovery diode array from Micro Commercial Co that is used in rectifiers.

  • Package: TO-220-3
  • Supplier Device Package: TO-220AB
  • Standard Package: 5,000
  • Diode Configuration: 1 Pair Common Cathode
  • Mounting Type: Through Hole
  • Voltage - DC Reverse (Vr) (Max): 300 V
  • Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 15 A
  • Current - Average Rectified (Io) (per Diode): 30A
