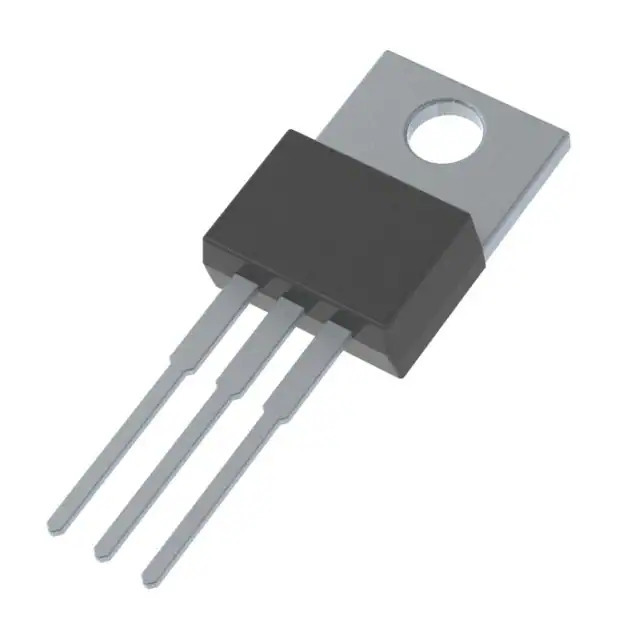

Same model may have multiple batches, images only for reference.
MBR20100CT-BP Micro Commercial Co
Same model may have multiple batches, images only for reference.

MBR20100CT-BP

Part No MBR20100CT-BP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 100V TO220 / Diode Array 1 Pair Common Cathode 100 V 10A Through Hole TO-220-3
Datasheet
MBR20100CT-BP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr Micro Commercial Co
Series -
Package Tube
Product Status Active
Diode Configuration 1 Pair Common Cathode
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) (per Diode) 10A
Voltage - Forward (Vf) (Max) @ If 950 mV @ 20 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 150 µA @ 100 V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Type Through Hole
Package / Case TO-220-3
Supplier Device Package TO-220AB
Base Product Number MBR20100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1354670-MBR20100CT-BP
Ultra Librarian 3D Model Ultra Librarian MBR20100CT-BP CAD Model

Description

The Micro Commercial Co. MBR20100CT-BP is a diode array consisting of two Schottky diodes with a maximum DC reverse voltage of 100V. Micro Commercial Co.

  • Diode Type: Schottky
  • Maximum DC Reverse Voltage: 100V
  • Average Rectified Current: 10A (per diode)
  • Forward Voltage: 950mV @ 20A
  • Mounting Type: Through-Hole
  • Package: TO-220-3
  • Recovery Speed: Fast
  • Reverse Leakage Current: 150μA @ 100V
  • Temperature Range: -55°C to 150°C
