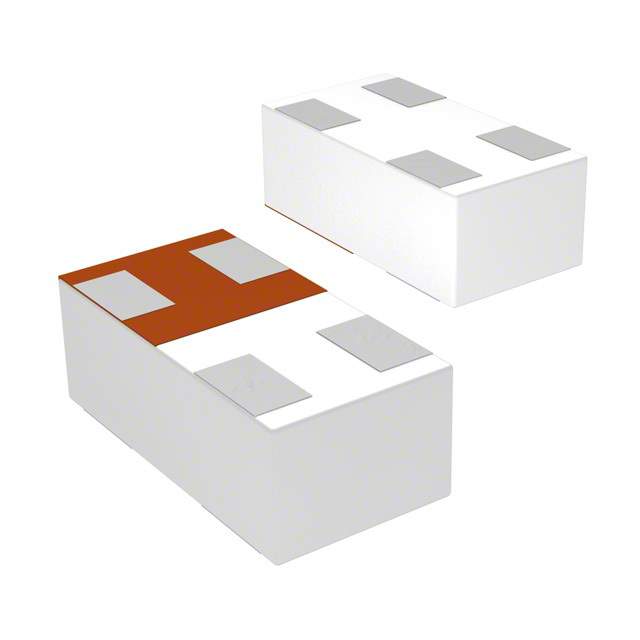

2450AT07A0100T Real Image
Same model may have multiple batches, images only for reference.

2450AT07A0100T

Part No 2450AT07A0100T
Manufacturer Johanson Technology Inc.
Catalog RF Antennas
Description ANTENNA SMD EIA 0402 2.4GHZ
Datasheet
2450AT07A0100T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Johanson Technology Inc.
Packaging Reel - TR
Status Active
Frequency Group UHF (2 GHz to 3 GHz)
Frequency (Center/Band) 2.4GHz
Frequency Range 2.4GHz to 2.5GHz
Antenna Type Chip
Number of Bands 1
Return Loss -6.5dB
Gain 1dBi
Maximum Power Dissipation 2W
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.015" (0.37mm)
Win Source Part Number 1003239-2450AT07A0100T
Popularity Medium
Supply and Demand Status Balance
Quantity per package 10k pcs
Ultra Librarian 3D Model Ultra Librarian 2450AT07A0100T CAD Model

Description

The 2450AT07A0100T is a chip antenna from Johanson Technology Inc. designed for use in RF/IF and RFID applications.

  • Frequency Range: 2.4GHz to 2.5GHz
  • Return Loss: -6.5dB
  • Antenna Type: Chip
  • Gain: 1dBi
  • Termination: Solder
  • Mounting: SMD (SMT) technology
  • Supply and Demand Status: Balanced
  • Quantity per Package: 10k pcs
