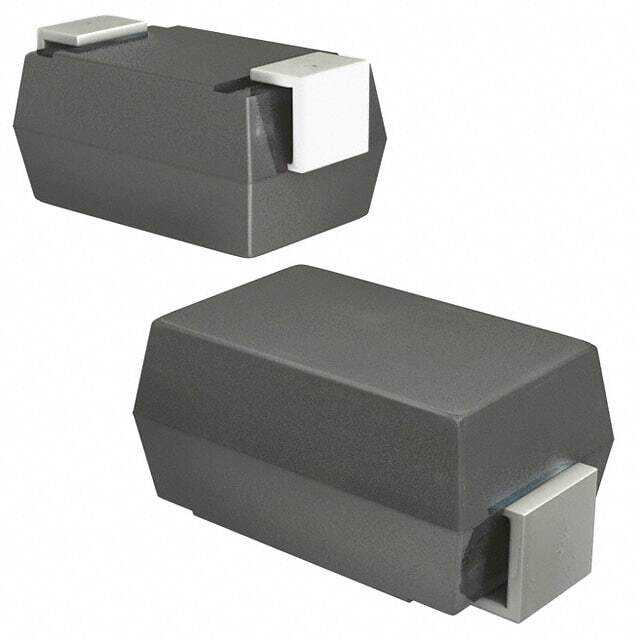

Same model may have multiple batches, images only for reference.
ES2D-LTP
Same model may have multiple batches, images only for reference.

ES2D-LTP

Part No ES2D-LTP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 200V 2A DO214AC / Diode 200 V 2A Surface Mount DO-214AC (SMA)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Micro Commercial Co
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 200 V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 950 mV @ 2 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 35 ns
Current - Reverse Leakage @ Vr 5 µA @ 200 V
Capacitance @ Vr, F 15pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Supplier Device Package DO-214AC (SMA)
Operating Temperature - Junction -65°C ~ 175°C
Base Product Number ES2D
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 846475-ES2D-LTP
Ultra Librarian 3D Model Ultra Librarian ES2D-LTP CAD Model

Description

The 846475-ES2D-LTP is a fast recovery diode designed for rectifier applications.

  • Maximum Reverse Voltage: 200V
  • Average Rectified Current: 2A
  • Forward Voltage Drop: 950mV @ 2A
  • Reverse Recovery Time: 35ns
  • Reverse Leakage Current: 5µA @ 200V
  • Capacitance: 15pF @ 4V, 1MHz
  • Operating Temperature: -65°C to 175°C
  • Mounting Type: Surface Mount
  • Package: DO-214AC (SMA)
  • Product Status: Active
