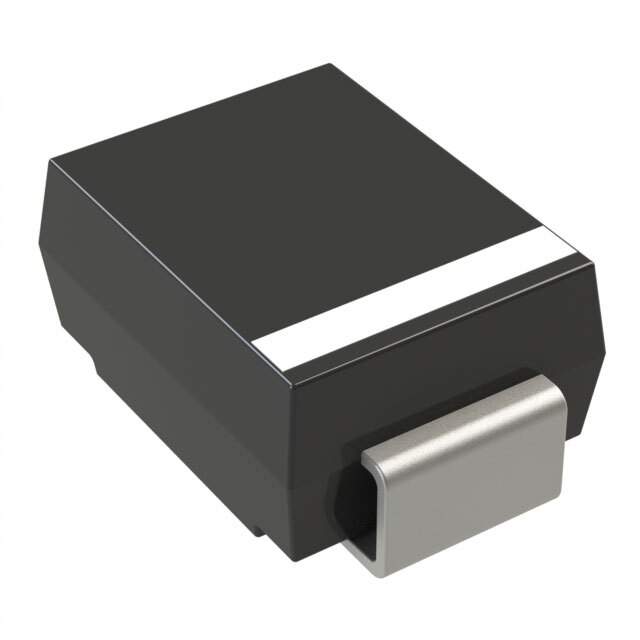

The ER1D-L is a fast recovery rectifier diode manufactured by Micro Commercial Components (MCC). This diode is designed for applications requiring efficient rectification and fast switching speeds. It's commonly used in power supplies, inverters, and other circuits where minimizing switching losses is crucial.

Applications:

• Switching power supplies
• Freewheeling diodes in inductive loads
• Inverters
• DC-DC converters
• High-frequency rectification circuits

Features:

• Fast recovery time
• Low forward voltage drop
• High surge current capability
• High reliability
• Small size

Benefits:

• Improved efficiency in switching circuits
• Reduced switching losses
• Minimized reverse recovery current
• Increased system reliability
• Compact design for space-constrained applications

Technical Specifications:

• Maximum Repetitive Peak Reverse Voltage (VRRM): Typically 200V
• Maximum Average Forward Rectified Current (IF(AV)): Typically 1A
• Maximum Peak Forward Surge Current (IFSM): Typically 30A
• Maximum Forward Voltage Drop (VF): Typically 0.95V at 1A
• Typical Reverse Recovery Time (trr): Typically 150ns
• Operating Temperature Range: -65°C to +150°C
• Package: DO-41

The ER1D-L offers a balance of performance and cost-effectiveness, making it a popular choice for a variety of applications. Its fast recovery time and low forward voltage drop contribute to improved efficiency and reduced heat dissipation in switching circuits. The DO-41 package is a standard through-hole package, making it easy to mount and solder.
