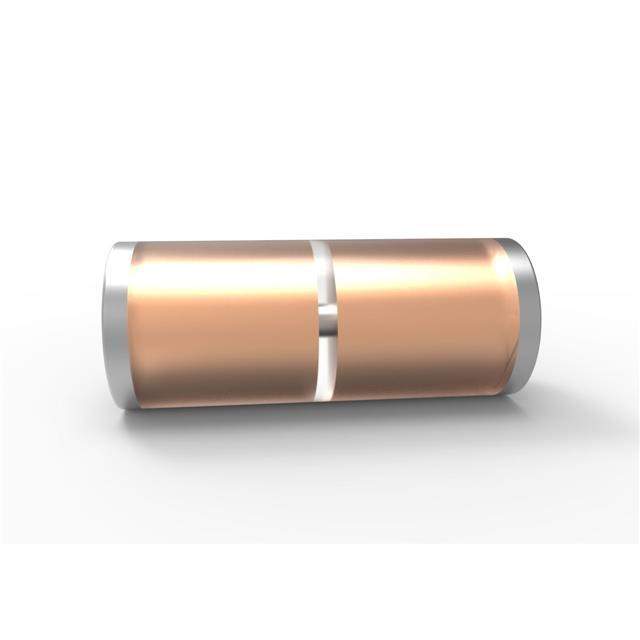

DL5244B-TP Real Image
Same model may have multiple batches, images only for reference.

DL5244B-TP

Part No DL5244B-TP
Manufacturer Micro Commercial Co
Catalog Diodes - Zener - Single
Description DIODE ZENER 14V 500MW MINI MELF / Zener Diode 14 V 500 mW ±5% Surface Mount Mini MELF
Datasheet
DL5244B-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Zener - Single
Mfr Micro Commercial Co
Package Tape & Reel
Product Status Obsolete
Voltage - Zener (Nom) (Vz) 14 V
Tolerance ±5%
Power - Max 500 mW
Impedance (Max) (Zzt) 15 Ohms
Current - Reverse Leakage @ Vr 100 nA @ 10 V
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 200 mA
Temperature Range - Operating -65°C ~ 175°C
Mounting SMD (SMT)
Package / Case DO-213AC, MINI-MELF, SOD-80
Supplier Device Package Mini MELF
Base Product Number DL5244
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0050
Other Names DL5244BTP,DL5244B-TPMSDKR,DL5244B-TPMSCT,DL5244B-TPMSTR,Q7611418
Standard Package 2,500
Win Source Part Number 1129965-DL5244B-TP
Ultra Librarian 3D Model Ultra Librarian DL5244B-TP CAD Model

Description

The Micro Commercial Co DL5244B-TP is a zener diode designed for general-purpose applications.

  • Mounting: SMD (SMT)
  • Package: tape & reel
  • Voltage - Zener (Nom) (Vz): 14 V
  • Tolerance: ±5%
  • Maximum Power: 500 mW
  • Current - Reverse Leakage @ Vr: 100 nA @ 10 V
  • Temperature Range for Operating: -65°C ~ 175°C
  • Product Status: obsolete
