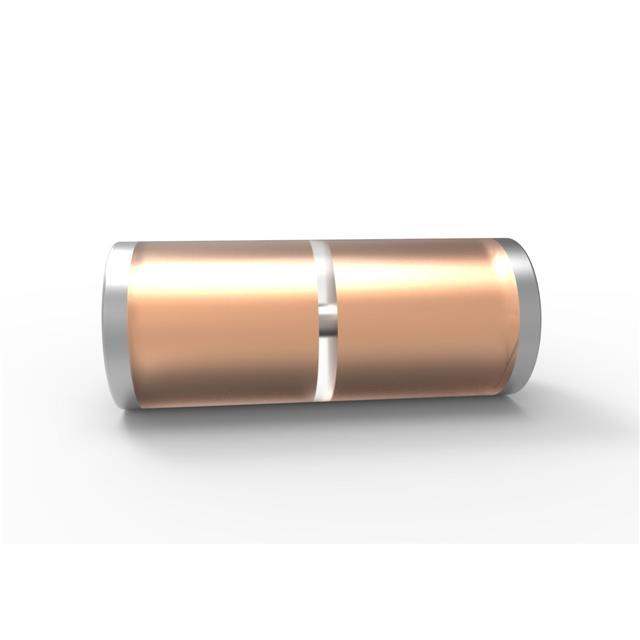

DL5242B-TP Real Image
Same model may have multiple batches, images only for reference.

DL5242B-TP

Part No DL5242B-TP
Manufacturer Micro Commercial Co
Catalog Diodes - Zener - Single
Description DIODE ZENER 12V 500MW MINIMELF
Datasheet
DL5242B-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Micro Commercial Co
Packaging Reel - TR
Status Active
Voltage - Zener (Nom) (Vz) 12V
Tolerance ±5%
Maximum Power Dissipation 500mW
Impedance (Max) (Zzt) 30 Ohm
Current - Reverse Leakage @ Vr 1μA @ 9.1V
Voltage - Forward (Vf) (Max) @ If 1.1V @ 200mA
Temperature Range - Operating -65°C to 175°C
Mounting SMD (SMT)
Case / Package Mini MELF
Win Source Part Number 000708-DL5242B-TP
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2,500
Ultra Librarian 3D Model Ultra Librarian DL5242B-TP CAD Model

Description

DL5242B-TP Description

The DL5242B-TP Zener diode is tailored for circuits that demand high precision in voltage regulation. Its compact size and robust structure allow seamless integration within electronic designs. With the DL5242B-TP, users benefit from consistent performance and enhanced circuit protection.

Features and Benefits

  • High precision voltage regulation
  • Robust build for longevity
  • Minimal power dissipation
  • Wide operational range

Applications

  • Microcontroller power supplies
  • Protection circuits
  • RF applications
  • LED lighting systems

Additional Details: The DL5242B-TP offers engineered precision to improve performance consistency and circuit protection in various demanding applications.
