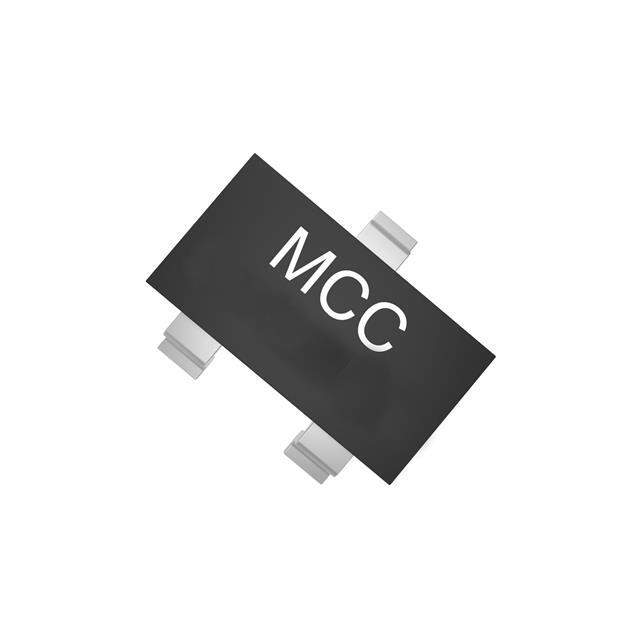

BAV23S-TP Real Image
Same model may have multiple batches, images only for reference.

BAV23S-TP

Part No BAV23S-TP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 200V 225MA SOT23
Datasheet
BAV23S-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 23 Weeks
Features Diode Array 1 Pair Series Connection Standard 200 V 225mA Surface Mount TO-236-3, SC-59, SOT-23-3
Manufacturer Micro Commercial Co
Package Reel - TR
Speed Fast Recovery =< 500ns, > 200mA (Io)
Mounting Surface Mount
Package TO-236-3, SC-59, SOT-23-3
Case / Package SOT-23
Family Name BAV23
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Part Number BAV23S-TPMSDKR, BAV23S-TPMSCT, BAV23S-TPMSTR
Quantity per package 3000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 863520-BAV23S-TP
Ultra Librarian 3D Model Ultra Librarian BAV23S-TP CAD Model

Description

The Micro Commercial Co BAV23 is a diode array designed for use in discrete semiconductor products. It is a surface-mount device that is packaged in TO-236-3, SC-59, SOT-23-3 form. It is a fast recovery diode with a speed of <500ns and >200mA (Io). The standard voltage is 200V, and the standard current is 225mA. The package comes in a reel - TR package and contains 3000 units. This diode is compliant with halogen-free regulations and is of medium popularity.
