Same model may have multiple batches, images only for reference.

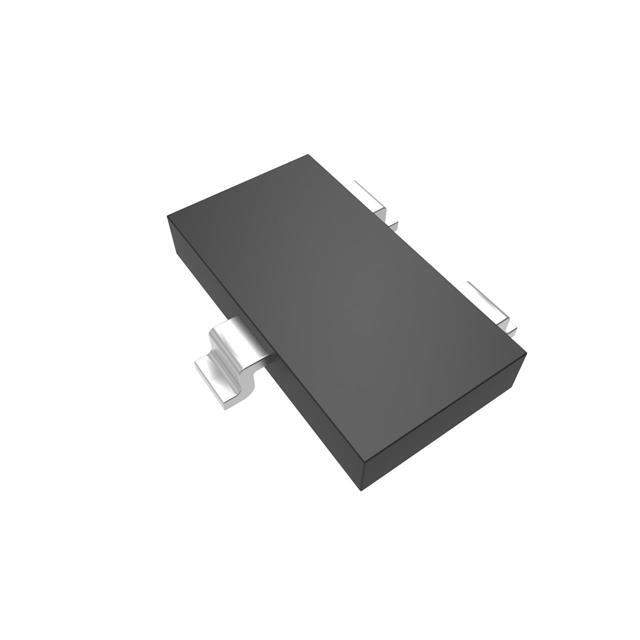

BAT54WT-TP Real Image
Same model may have multiple batches, images only for reference.

BAT54WT-TP

Part No BAT54WT-TP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 200MA SOT323
Datasheet
BAT54WT-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Micro Commercial Co
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 200mA (DC)
Voltage - Forward (Vf) (Max) @ If 1V @ 100mA
Reverse Recovery Time (trr) 5ns
Current - Reverse Leakage @ Vr 2μA @ 25V
Capacitance @ Vr, F 10pF @ 0V, 1MHz
Mounting SMD (SMT)
Case / Package SOT-323
Operating Temperature - Junction -55°C to 125°C
Win Source Part Number 1022182-BAT54WT-TP
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian BAT54WT-TP CAD Model

Description

The Micro Commercial Co BAT54WT-TP is a Schottky diode that belongs to the Discrete Semiconductor Products category.

  • Category: Discrete Semiconductor Products
  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • Applications: High-frequency applications, power management, and voltage clamping circuits
  • Mounting: Surface-mount device
  • Package: SOT-323
  • Maximum Reverse Voltage: 30V
  • Maximum Forward Voltage @ 100mA: 1V
  • Reverse Recovery Time: 5ns
  • Capacitance: 10pF
