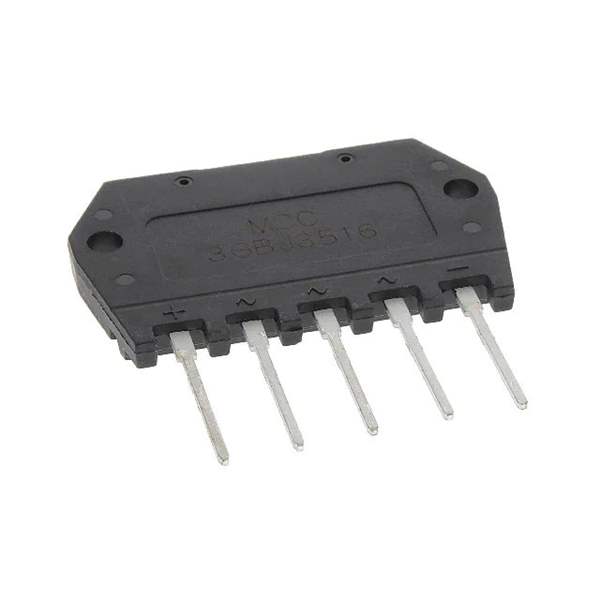

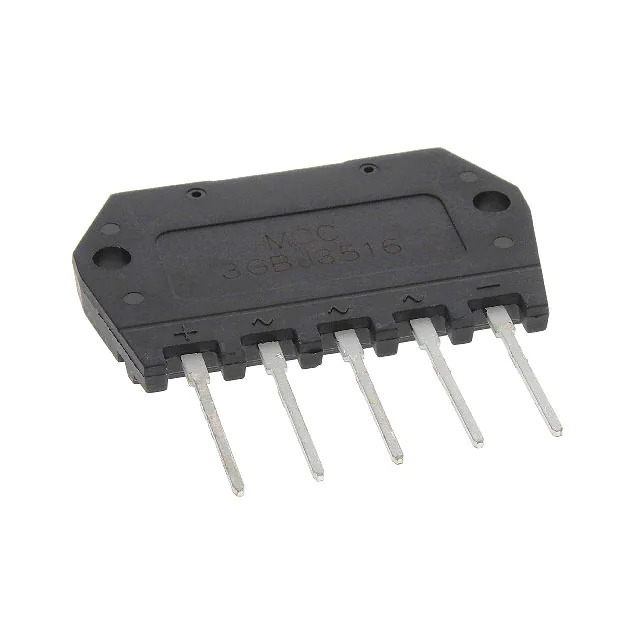

3GBJ3516-BP Micro Commercial Co
Same model may have multiple batches, images only for reference.

3GBJ3516-BP

Part No 3GBJ3516-BP
Manufacturer Micro Commercial Co
Catalog Bridge Rectifiers
Description BRIDGE RECT 3P 1.6KV 35A TSB-5
Datasheet
3GBJ3516-BP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Micro Commercial Co
Series -
Package Bulk
Product Status Active
Diode Type Three Phase
Technology Standard
Voltage - Peak Reverse (Max) 1.6 kV
Current - Average Rectified (Io) 35 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 17.5 A
Current - Reverse Leakage @ Vr 10 µA @ 1600 V
Temperature Range - Operating -55°C ~ 150°C
Mounting Type Through Hole
Package / Case 5-SIP, TSB-5
Supplier Device Package TSB-5
Base Product Number 3GBJ3516
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1368003-3GBJ3516-BP
Ultra Librarian 3D Model Ultra Librarian 3GBJ3516-BP CAD Model

Description

The 3GBJ3516-BP is a bridge rectifier from Micro Commercial Co.

  • Product Category: Discrete Semiconductor Products
  • Operating Temperature: -55°C ~ 150°C
  • Current - Average Rectified (Io): 35A
  • Voltage - Forward (Vf) (Max) @ If: 1.1V @ 17.5A
  • Current - Reverse Leakage @ Vr: 10μA @ 1600V
  • Mounting Type: Through Hole
  • Package / Case: 5-SIP, TSB-5
  • REACH: Unaffected
  • ECCN: EAR99
