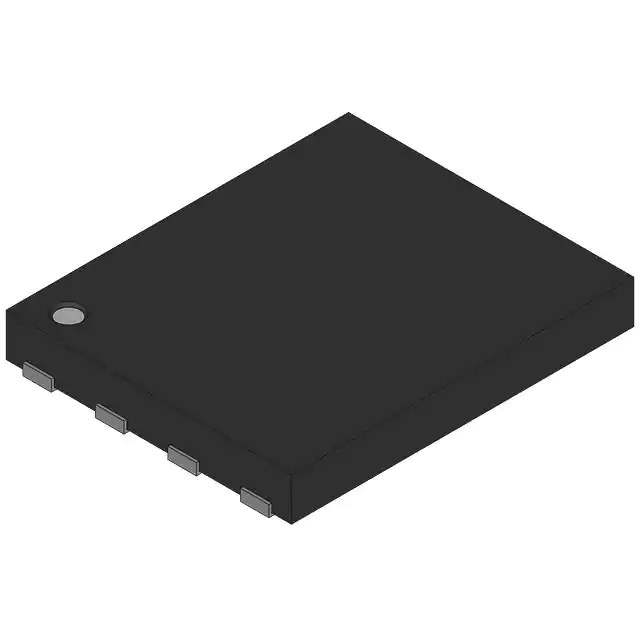

MIC2293-15YML Real Image
Same model may have multiple batches, images only for reference.

MIC2293-15YML

Part No MIC2293-15YML
Manufacturer Micrel
Catalog PMIC - LED Drivers
Description HIGH FREQUENCY PWM WHITE LED DRI
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - LED Drivers
Mfr Micrel
Package Bulk
Product Status Active
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 1
Voltage - Supply (Min) 2.5V
Voltage - Supply (Max) 10V
Voltage - Output 15V
Current - Output / Channel 750mA (Switch)
Frequency 2MHz
Dimming PWM
Applications Backlight
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case 8-VFDFN Exposed Pad, 8-MLF®
Supplier Device Package 8-MLF® (2x2)
Base Product Number MIC2293
Standard Package 1 pcs
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 639523-MIC2293-15YML
Ultra Librarian 3D Model Ultra Librarian MIC2293-15YML CAD Model

Description

The 639523-MIC2293-15YML from Micrel is a LED driver integrated circuit (IC) designed for power management applications, specifically for backlight applications.

  • Series: Power Management (PMIC) - LED Drivers
  • Type: DC DC regulator
  • Topology: Step-Up (Boost)
  • Output Channels: 1
  • Voltage Output: 15V
  • Current Output: 750mA
  • Internal Switch: Yes
  • Input Voltage: 2.5V to 10V
  • Mounting Type: Surface Mount
  • Package Case: 8-VFDFN Exposed Pad, 8-MLF®
  • Supplier Device Package: 8-MLF® (2x2)
  • Operating Temperature: -40°C to 125°C
  • Lifecycle Status: Active
