Same model may have multiple batches, images only for reference.

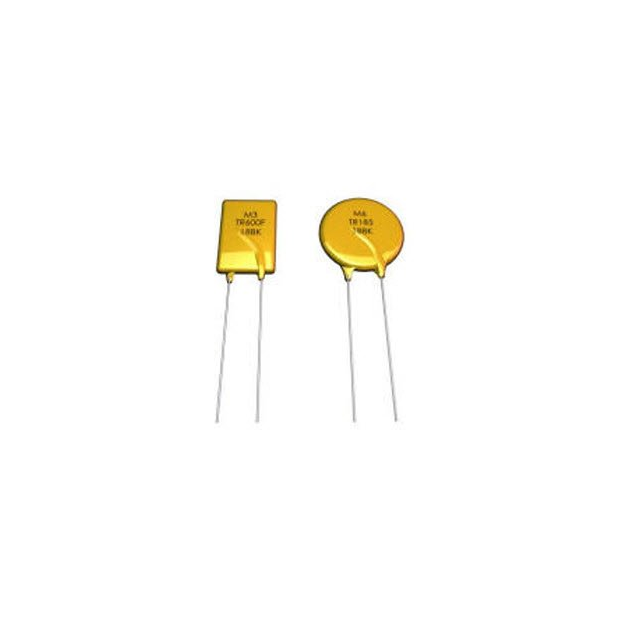

MPTR60V160 Real Image
Same model may have multiple batches, images only for reference.

MPTR60V160

Part No MPTR60V160
Manufacturer Meritek
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 60V 1.6A RADIAL / Polymeric PTC Resettable Fuse 60V 1.6 A Ih Through Hole Radial, Disc
Datasheet
MPTR60V160 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr Meritek
Series MPTR
Package Bulk
Type Polymeric
Voltage - Max 60V
Current - Max 40 A
Current - Hold (Ih) (Max) 1.6 A
Current - Trip (It) 3.2 A
Time to Trip 11.4 s
Resistance - Initial (Ri) (Min) 90 mOhms
Resistance - Post Trip (R1) (Max) 220 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.642" Dia x 0.122" T (16.30mm x 3.10mm)
Height - Seated (Max) 0.839" (21.30mm)
Lead Spacing 0.201" (5.10mm)
Approval Agency cUL, TUV, UL
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1350450-MPTR60V160
Ultra Librarian 3D Model Ultra Librarian MPTR60V160 CAD Model

Description

The Meritek MPTR series is a polymeric PTC resettable fuse that comes in a radial, disc package.

  • Package: Radial, Disc
  • Voltage - Max: 60V
  • Current - Max: 40A
  • Current - Trip (It): 3.2A
  • Time to Trip: 11.4s
  • Mounting Type: Through Hole
  • Lead Spacing: 0.201" (5.10mm)
  • Size / Dimension: 0.642" Dia x 0.122" T (16.30mm x 3.10mm)
  • Operating Temperature: -40°C ~ 85°C
  • Approvals: cUL, TUV, UL
  • Current - Hold (Ih) (Max): 1.6A
  • Initial Resistance (Ri) (Min): 90mOhms
  • Post Trip Resistance (R1) (Max): 220mOhms
