Same model may have multiple batches, images only for reference.

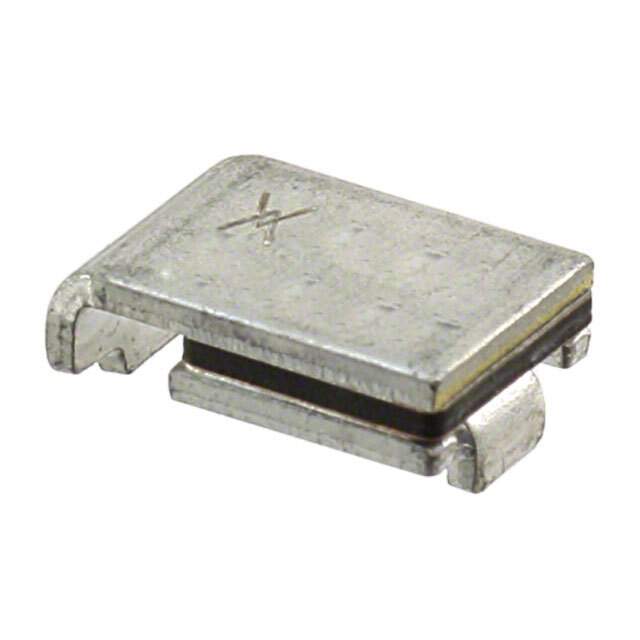

ASMD030F-2 Real Image
Same model may have multiple batches, images only for reference.

ASMD030F-2

Part No ASMD030F-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH PTC RESET .23A HOLD
Datasheet
ASMD030F-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 60V
Current - Max 10A
Current - Hold (Ih) (Max) 230mA
Current - Trip (It) 590mA
Time to Trip 12s
Resistance - Initial (Ri) (Min) 980 mOhm
Resistance - Post Trip (R1) (Max) 4.8 Ohm
Temperature Range - Operating -40°C to 85°C
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.290" L x 0.202" W (7.36mm x 5.12mm)
Thickness (Max) 0.125" (3.18mm)
Win Source Part Number 1018633-ASMD030F-2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ASMD030F-2 CAD Model

Description

The Littelfuse ASMD030F-2 is a polymeric type circuit protection device with AEC-Q200 ratings.

  • Voltage Rating: 60V
  • Maximum Current Rating: 10A
  • Current Hold (Ih) (Max): 230mA
  • Current Trip (It): 590mA
  • Time to Trip: 12s
  • Resistance - Initial (Ri) (Min): 980 mOhm
  • Resistance - Post-Trip (R1) (Max): 4.8 Ohm
  • Active: true
  • Popularity: Medium
  • Temperature Range: -40°C to 85°C
  • Dimension: 0.290" L x 0.202" W (7.36mm x 5.12mm)
