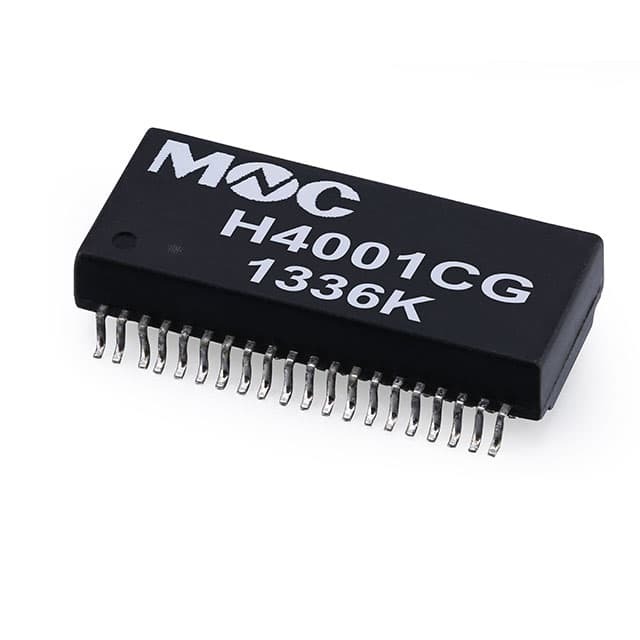

Same model may have multiple batches, images only for reference.
H4001CG
Same model may have multiple batches, images only for reference.

H4001CG

Part No H4001CG
Manufacturer Mentech Technology USA Inc.
Catalog Pulse Transformers
Description QUAD LAN XFMR 10/100 BASE-T / 350μH LAN 10/100 Base-T Pulse Transformer 1CT:1CT Surface Mount
Datasheet
H4001CG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Mentech Technology USA Inc.
Package Tape & Reel
Product Status Active
Transformer Type LAN 10/100 Base-T
Inductance 350µH
Mounting Type Surface Mount
Size / Dimension 1.126" L x 0.496" W (28.60mm x 12.60mm)
Height - Seated (Max) 0.252" (6.40mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 5 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.9000
Win Source Part Number 873160-H4001CG
Ultra Librarian 3D Model Ultra Librarian H4001CG CAD Model

Description

The 873160-H4001CG is a pulse transformer designed for use in transformers for LAN 10/100 Base-T applications.

  • Manufacturer: Mentech Technology USA Inc.
  • Size: 1.126" L x 0.496" W (28.60mm x 12.60mm)
  • Height: 0.252" (6.40mm)
  • Inductance: 350μH
  • Mounting Type: Surface Mountable
  • Operating Temperature: 0°C to 70°C
  • Package: Tape and Reel
  • Standard Package: 5 pieces
  • Product Status: Active
