Same model may have multiple batches, images only for reference.

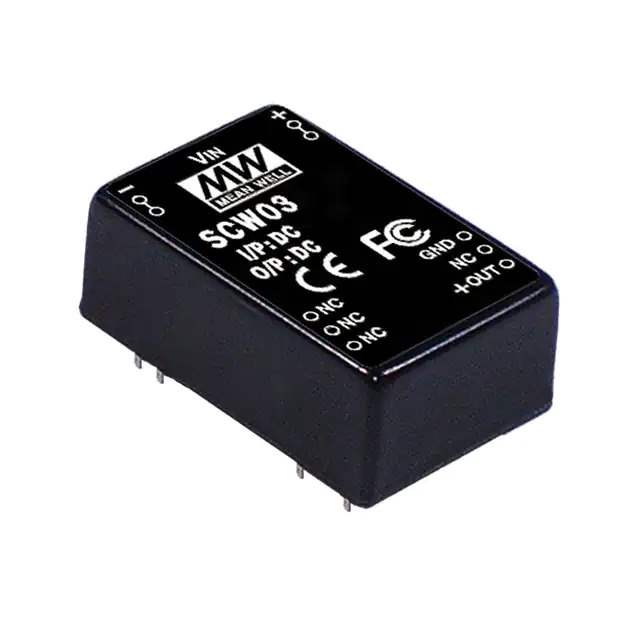

SCW03C-05 Real Image
Same model may have multiple batches, images only for reference.

SCW03C-05

Part No SCW03C-05
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 3W
Datasheet
SCW03C-05 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mean Well Enterprises Co., Ltd.
Series SCW03 (3W)
Package Tube
Product Status Obsolete
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 72V
Voltage - Output 1 5V
Current - Output (Max) 600mA
Power (Watts) 3 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Features OCP, SCP
Temperature Range - Operating -40°C ~ 71°C (With Derating)
Efficiency 76%
Mounting Type Through Hole
Package / Case 24-DIP Module, 8 Leads
Size / Dimension 1.25" L x 0.80" W x 0.48" H (31.8mm x 20.3mm x 12.2mm)
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 664576-SCW03C-05
Ultra Librarian 3D Model Ultra Librarian SCW03C-05 CAD Model

Description

The SCW03C-05 is a 3W isolated module DC-DC converter from Mean Well.

  • Overcurrent Protection (OCP): Yes
  • Short Circuit Protection (SCP): Yes
  • Size: 1.25" L x 0.80" W x 0.48" H
  • Voltage Input Range: 36V to 72V
  • Output: 5V
  • Maximum Output Current: 600mA
  • Efficiency: 76%
  • Temperature Range: -40°C to 71°C
  • Mounting: Through Hole
  • Package: 24-DIP Module
