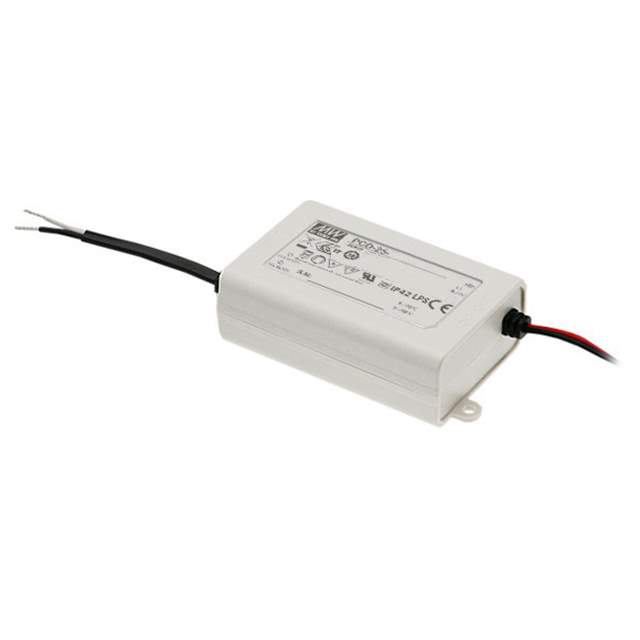

PCD-25-1050A Real Image
Same model may have multiple batches, images only for reference.

PCD-25-1050A

Part No PCD-25-1050A
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) LED Drivers
Description LED DRVR CC AC/DC 16-24V 1.05A / 1.05A 16 ~ 24V Constant Current LED Driver AC DC Converter Topology 1 Output
Datasheet
PCD-25-1050A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>LED Drivers
Mfr MEAN WELL USA Inc.
Series PCD-25 (25W)
Package Box
Type Constant Current
Topology AC DC Converter
Number of Outputs 1
Voltage - Input (Min) 90VAC
Voltage - Input (Max) 135VAC
Voltage - Output 16 ~ 24V
Current - Output (Max) 1.05A
Power (Watts) 25 W
Voltage - Isolation 3.75 kV
Dimming Triac
Features OTP, SCP
Ratings IP42
Temperature Range - Operating -30°C ~ 60°C
Efficiency 80.5%
Termination Style Wire Leads
Dimension 3.31" L x 2.24" W x 1.16" H (84.0mm x 57.0mm x 29.5mm)
Approval Agency cURus
Mounting Type Chassis Mount
Base Product Number PCD-25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Other Names 1866-3752,PCD-25-1050A-ND
Standard Package 72
Win Source Part Number 998531-PCD-25-1050A
Ultra Librarian 3D Model Ultra Librarian PCD-25-1050A CAD Model

Description

The PCD-25-1050A is a 25W constant current LED driver from MEAN WELL USA Inc. It has a voltage output range of 16 ~ 24V and a current output of 1.05A.

  • Voltage - Output: 16 ~ 24V
  • Current - Output: 1.05A
  • Dimming: Triac
  • Efficiency: 80.5%
  • Mounting Type: Chassis Mount
  • Dimension: 3.31" L x 2.24" W x 1.16" H
  • Voltage - Isolation: 3.75 kV
  • Operating Temperature: -30°C ~ 60°C
  • IP Rating: IP42
  • Supplied In: Box
  • Series: PCD-25
  • Ideal For: Various Lighting Applications
