Same model may have multiple batches, images only for reference.

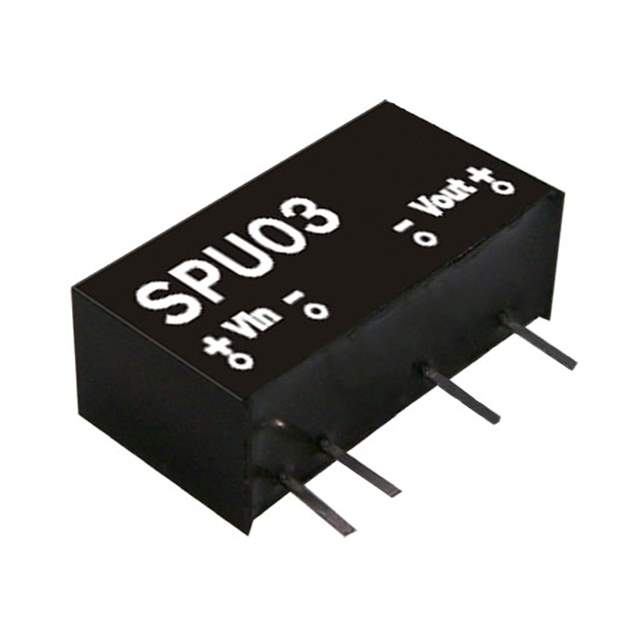

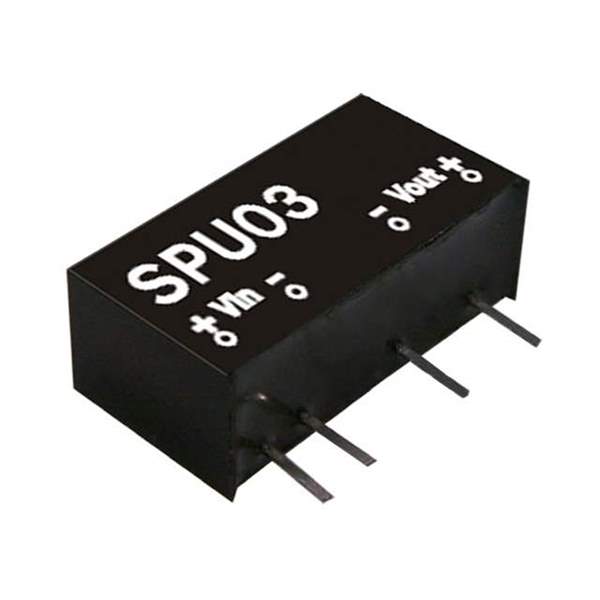

SPU03N-05 Real Image
Same model may have multiple batches, images only for reference.

SPU03N-05

Part No SPU03N-05
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 3W / Isolated Module DC DC Converter 1 Output 5V 600mA 21.6V - 26.4V Input
Datasheet
SPU03N-05 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer MEAN WELL USA Inc.
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 5V
Current - Output (Max) 600mA
Power (Watts) 3 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features OCP, SCP
Temperature Range - Operating -40°C ~ 90°C (With Derating)
Efficiency 83%
Mounting Through Hole
Case / Package 7-SIP Module, 4 Leads
Size / Dimension 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.5mm x 10.2mm)
Base Product Number SPU03
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1866-4862,SPU03N-05-ND
Standard Package 4,000
Win Source Part Number 1335329-SPU03N-05
Ultra Librarian 3D Model Ultra Librarian SPU03N-05 CAD Model

Description

The MEAN WELL USA Inc. SPU03N-05 is a 3W isolated module DC DC converter.

  • Size: 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.5mm x 10.2mm)
  • Applications: ITE (Commercial)
  • Features: OCP and SCP
  • Voltage Isolation: 3 kV
  • Outputs: One output
  • Maximum Output Current: 600mA
  • Output Voltage: 5V
  • Input Voltage Range: from 21.6V to 26.4V
  • Efficiency: 83%
  • Operating Temperature Range: -40°C to 90°C (With Derating)
  • Package: 7-SIP module with 4 leads
  • Compliance: RoHS3 Compliant
