Same model may have multiple batches, images only for reference.

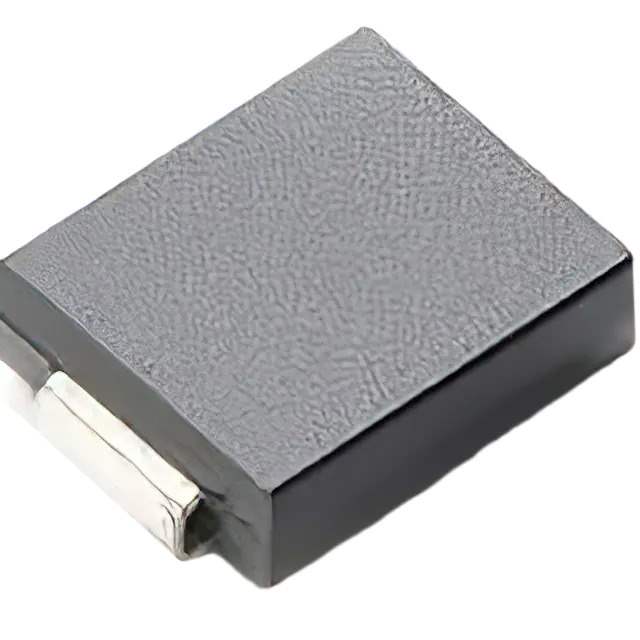

5.0SMLJ36A Real Image
Same model may have multiple batches, images only for reference.

5.0SMLJ36A

Part No 5.0SMLJ36A
Manufacturer MDE Semiconductor, Inc.
Catalog TVS - Diodes
Description TVS DIODE UP 36VRWM 58.1VC
Datasheet
5.0SMLJ36A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr MDE Semiconductor, Inc.
Series 5.0SMLJ
Package Tape & Reel
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 36V
Voltage - Breakdown (Min) 40V
Voltage - Clamping (Max) @ Ipp 58.1V
Current - Peak Pulse (10/1000µs) 86.1A
Power - Peak Pulse 5000W (5kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-214AB, SMC
Supplier Device Package DO-214AB (SMCJ)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
Win Source Part Number 546219-5.0SMLJ36A
Ultra Librarian 3D Model Ultra Librarian 5.0SMLJ36A CAD Model

Description

The 546219-5.0SMLJ36A is a Zener-type TVS diode designed for circuit protection against transient voltage spikes.

  • Series: 5.0SMLJ
  • Reverse Standoff Voltage: 36V
  • Breakdown Voltage: 40V
  • Clamping Voltage: 58.1V @ 86.1A
  • Peak Pulse Power: 5000W (5kW)
  • Mounting Type: Surface Mount
  • Package: DO-214AB (SMCJ)
  • Operating Temperature: -55°C to 150°C
  • Manufacturer: MDE Semiconductor, Inc.
  • Category: Circuit Protection
