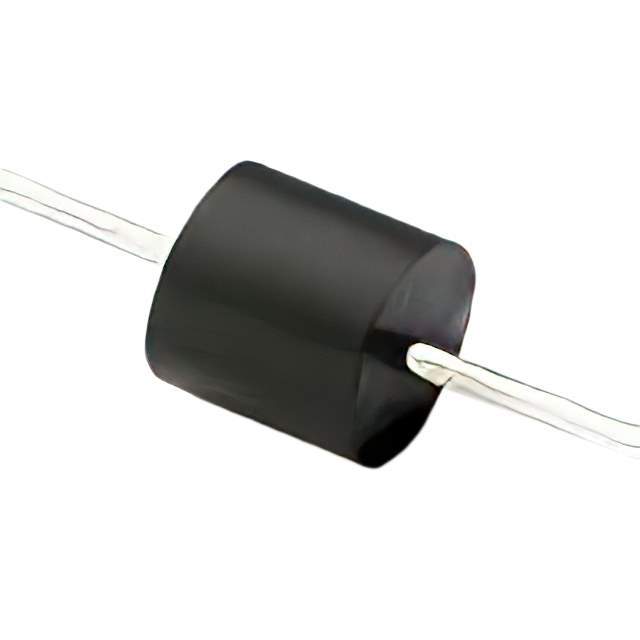

20KPA30CA Real Image
Same model may have multiple batches, images only for reference.

20KPA30CA

Part No 20KPA30CA
Manufacturer MDE Semiconductor, Inc.
Catalog TVS - Diodes
Description TVS DIODE UP 30VRWM 51.5VC  /  51.5V Clamp 392.2A Ipp Tvs Diode Through Hole P600
Datasheet
20KPA30CA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr MDE Semiconductor Inc
Series 20KPA
Package Bulk
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 30V
Voltage - Breakdown (Min) 33.51V
Voltage - Clamping (Max) @ Ipp 51.5V
Current - Peak Pulse (10/1000µs) 392.2A
Power - Peak Pulse 20000W (20kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case P600, Axial
Supplier Device Package P600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
Other Names 3811-20KPA30CA
Standard Package 100
Win Source Part Number 1156466-20KPA30CA
Ultra Librarian 3D Model Ultra Librarian 20KPA30CA CAD Model

Description

The 20KPA30CA is a high-quality TVS diode manufactured by MDE Semiconductor Inc.

  • Channel: bidirectional
  • Voltage Reverse Standoff: 30V
  • Voltage Breakdown: 33.51V
  • Voltage Clamping: 51.5V @ Ipp
  • Peak Pulse Power: 20kW
  • Peak Pulse Current: 392.2A
