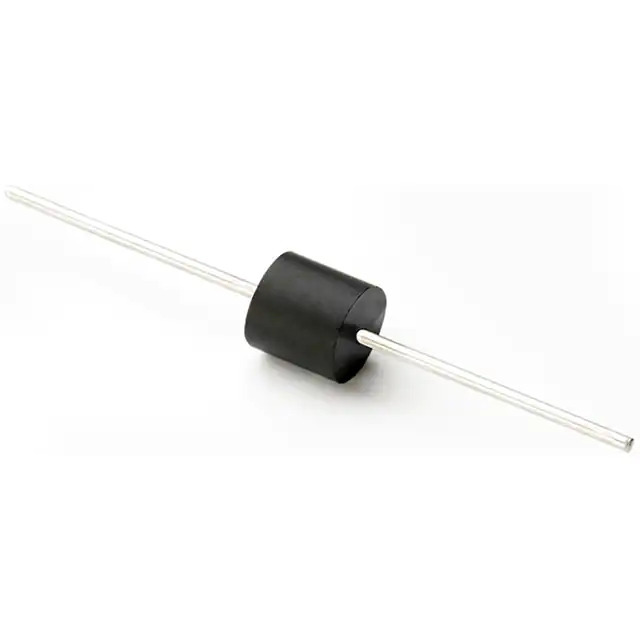

Same model may have multiple batches, images only for reference.
15KP120A MDE Semiconductor, Inc.
Same model may have multiple batches, images only for reference.

15KP120A

Part No 15KP120A
Manufacturer MDE Semiconductor, Inc.
Catalog TVS - Diodes
Description TVS DIODE UP 120VRWM 192.3VC
Datasheet
15KP120A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr MDE Semiconductor Inc
Series 15KP
Package Bulk
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 120V
Voltage - Breakdown (Min) 134V
Voltage - Clamping (Max) @ Ipp 192.3V
Current - Peak Pulse (10/1000µs) 78.5A
Power - Peak Pulse 15000W (15kW)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency -
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case P600, Axial
Supplier Device Package P600
MSL Level 1 (Unlimited)
REACH Status REACH info available upon request
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1377334-15KP120A
Ultra Librarian 3D Model Ultra Librarian 15KP120A CAD Model

Description

The 15KP120A is a TVS diode manufactured by MDE Semiconductor Inc. It is a part of the circuit protection - transient voltage suppressors (TVS) - TVS diodes category.

  • Type: Zener
  • Package: P600, axial
  • Voltage - Reverse Standoff: 120V
  • Voltage - Breakdown: 134V
  • Voltage - Clamping: 192.3V @ a peak pulse of 78.5A (10/1000µs)
  • Power - Peak Pulse: 15000W (15kW)
  • Application: General Purpose
  • Purpose: Designed to protect electronic circuits from transient voltage spikes and surges.
  • Benefit: A reliable and efficient solution for ensuring the safety and longevity of electronic devices.
