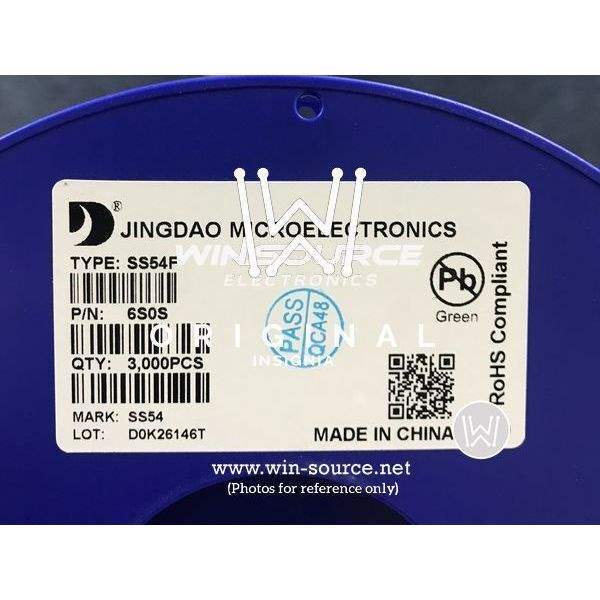

SS54F Real Image SS54F label picture
Same model may have multiple batches, images only for reference.
SS54F Real Image SS54F label picture
SS54F Real Image SS54F label picture
Same model may have multiple batches, images only for reference.

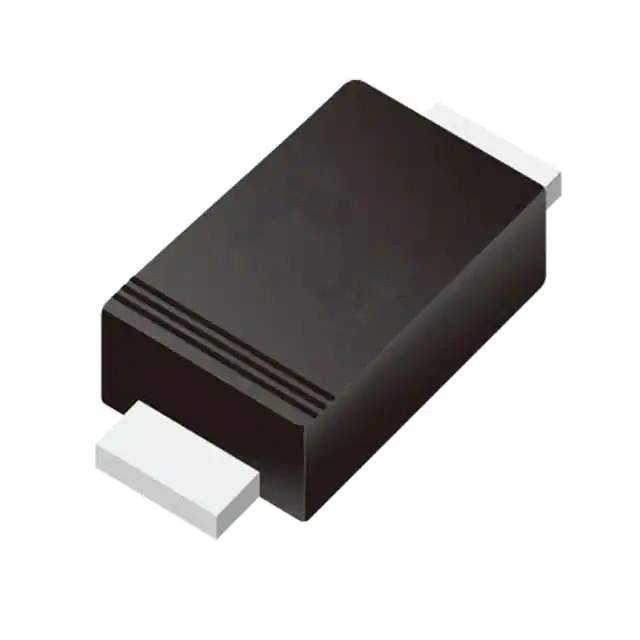

SS54F

Part No SS54F
Manufacturer MDD
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 5A SMAF
Datasheet
SS54F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr MDD
Series SMAF
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 5A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 40 V
Capacitance @ Vr, F 200pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-221AC, SMA Flat Leads
Supplier Device Package SMAF
Operating Temperature - Junction -55°C ~ 125°C
Standard Package 6,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 676409-SS54F
Ultra Librarian 3D Model Ultra Librarian SS54F CAD Model

Description

The 676409-SS54F is a high current Schottky diode designed for rectification applications.

  • Series: SMAF
  • Packaging: Tape and Reel
  • Package Quantity: 6,000 pieces
  • Maximum DC Reverse Voltage: 40V
  • Average Rectified Current: 5A
  • Reverse Leakage Current: 500µA @ 40V
  • Capacitance: 200pF @ 4V and 1MHz
  • Temperature Range: -55°C to 125°C
  • Package Type: Surface Mount (DO-221AC, SMA Flat Leads)
  • Manufacturer: MDD
