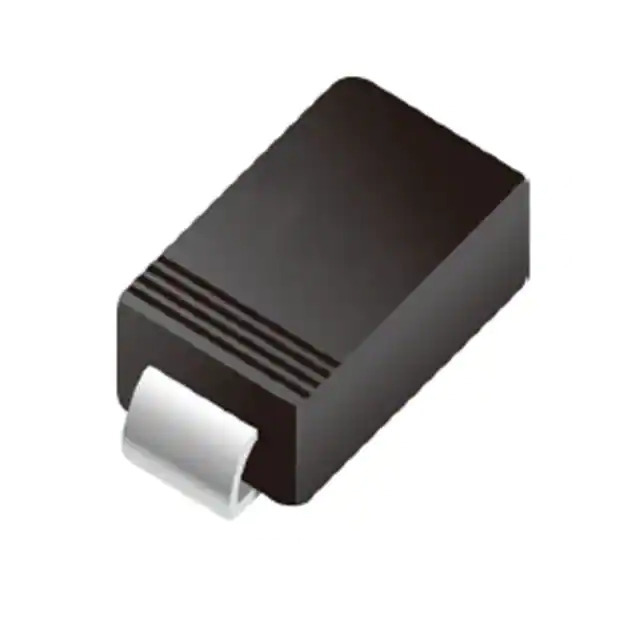

Same model may have multiple batches, images only for reference.
SS3200 MDD
Same model may have multiple batches, images only for reference.

SS3200

Part No SS3200
Manufacturer MDD
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 200V 3A SMA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr MDD
Series SMA
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 200 V
Current - Average Rectified (Io) 3A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 200 µA @ 200 V
Capacitance @ Vr, F 300pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Supplier Device Package SMA
Operating Temperature - Junction -55°C ~ 150°C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1367027-SS3200
Ultra Librarian 3D Model Ultra Librarian SS3200 CAD Model

Description

The SS3200 is a Schottky diode rectifier from MDD.

  • Series: SMA
  • Operating Temperature: -55°C to 150°C
  • Maximum Reverse Voltage: 200V
  • Average Rectified Current: 3A
  • Recovery Speed: < 500ns
  • Package: DO-214AC, SMA
  • Mounting Type: Surface Mount
  • REACH Compliance: Yes
  • ECCN: EAR99
