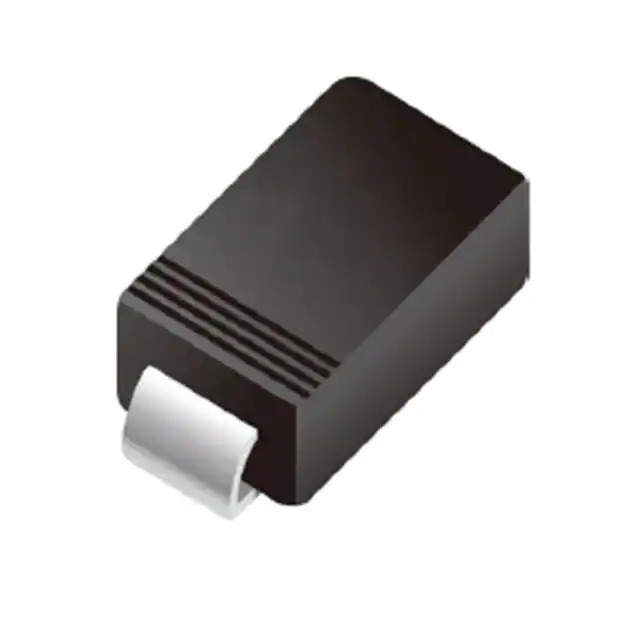

Same model may have multiple batches, images only for reference.
SS3150 MDD
Same model may have multiple batches, images only for reference.

SS3150

Part No SS3150
Manufacturer MDD
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 150V 3A SMA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr MDD
Series SMA
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 150 V
Current - Average Rectified (Io) 3A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 200 µA @ 150 V
Capacitance @ Vr, F 300pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Supplier Device Package SMA
Operating Temperature - Junction -55°C ~ 150°C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1366994-SS3150
Ultra Librarian 3D Model Ultra Librarian SS3150 CAD Model

Description

The 1366994-SS3150 is a single diode rectifier from the SMA series by MDD.

  • Series: SMA
  • Product Type: Discrete Semiconductor
  • Application: Diode
  • Package: DO-214AC, SMA
  • Mounting Type: Surface Mount
  • Reverse Voltage: 150V
  • Average Rectified Current: 3A
  • Recovery Speed: Less than 500ns @ Greater than 200mA
  • Capacitance: 300pF @ 4V and 1MHz
  • Operating Temperature: -55°C to 150°C
  • REACH: Compliant
  • ECCN: EAR99
  • Product Status: Active
