Same model may have multiple batches, images only for reference.

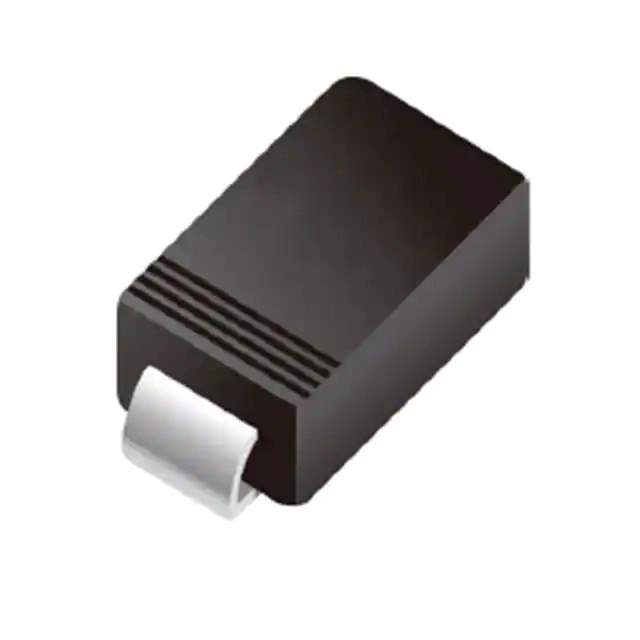

SS2150 Real Image
Same model may have multiple batches, images only for reference.

SS2150

Part No SS2150
Manufacturer MDD
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 150V 2A SMA / Diode 150 V 2A Surface Mount SMA
Datasheet
SS2150 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr MDD
Series SMA
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 150 V
Current - Average Rectified (Io) 2A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 300 µA @ 150 V
Capacitance @ Vr, F 80pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Supplier Device Package SMA
Operating Temperature - Junction -55°C ~ 150°C
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 676286-SS2150
Ultra Librarian 3D Model Ultra Librarian SS2150 CAD Model

Description

The 676286-SS2150 is a fast recovery Schottky diode designed for rectification applications.

  • Package Series: SMA
  • Maximum DC Reverse Voltage: 150V
  • Average Rectified Current: 2A
  • Reverse Leakage Current: 300μA
  • Capacitance: 80pF @ 4V and 1MHz
  • Mounting: Surface Mountable
  • Operating Temperature: -55°C to 150°C
  • Status: Active
  • Manufacturer: MDD
