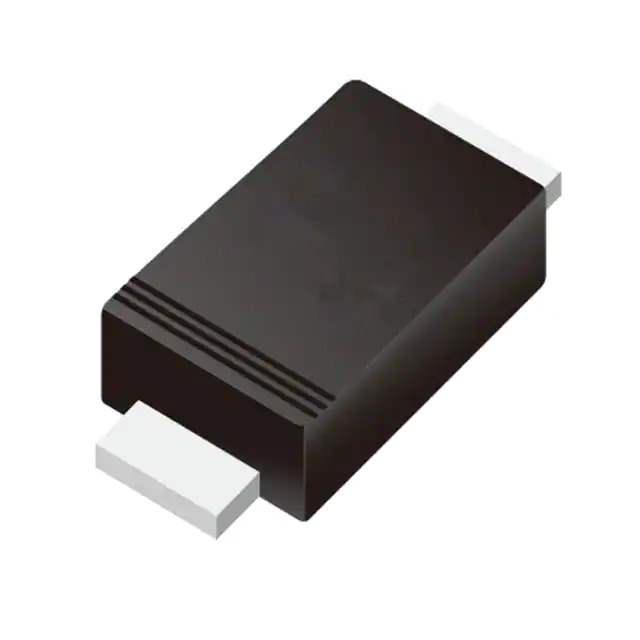

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr MDD
Series SOD-123FL
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 400 V
Current - Average Rectified (Io) 1A
Capacitance @ Vr, F 8pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case SOD-123FL
Supplier Device Package SOD-123FL
Operating Temperature - Junction -55°C ~ 150°C
Standard Package 12,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 674136-SOD4004
Ultra Librarian 3D Model Ultra Librarian SOD4004 CAD Model

Description

The 674136-SOD4004 is a standard rectifier diode designed for general-purpose rectification applications.

  • Series: SOD-123FL
  • Packaging: Tape and Reel
  • Standard Package: 12,000 pieces
  • Maximum DC Reverse Voltage: 400V
  • Average Rectified Current: 1A
  • Capacitance: 8pF @ 4V and 1MHz
  • Operating Temperature: -55°C to 150°C
  • Package: Surface Mount (SOD-123FL)
  • Status: Active
  • Manufacturer: MDD
