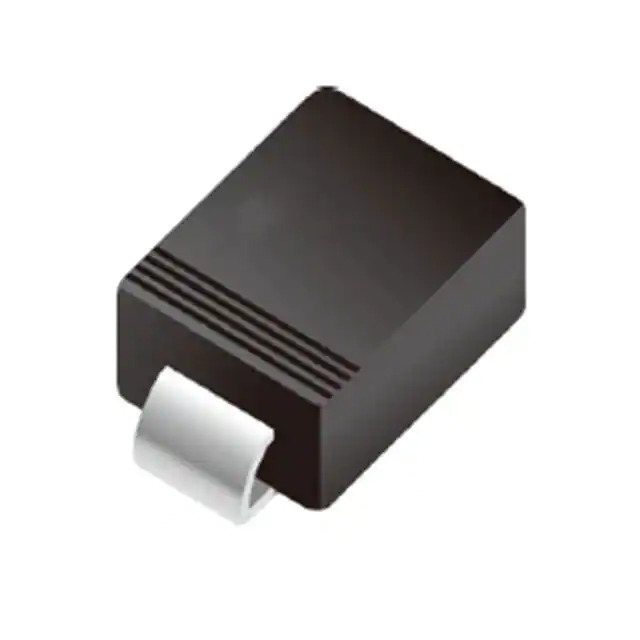

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr MDD
Series SMB
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 45 V
Current - Average Rectified (Io) 10A
Voltage - Forward (Vf) (Max) @ If 650 mV @ 10 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 1 mA @ 45 V
Capacitance @ Vr, F 500pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Supplier Device Package SMB
Operating Temperature - Junction -50°C ~ 150°C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1367213-SK1045B
Ultra Librarian 3D Model Ultra Librarian SK1045B CAD Model

Description

The 1367213-SK1045B is a Schottky diode from the SMB series manufactured by MDD.

  • Application: Rectifier
  • Maximum DC Reverse Voltage: 45V
  • Average Rectified Current: 10A
  • Forward Voltage: 650mV @ 10A
  • Recovery Time: Less than 500ns
  • Reverse Leakage Current: 1mA @ 45V
  • Capacitance: 500pF @ 4V, 1MHz
  • Operating Temperature: -50°C to 150°C
  • Package: DO-214AA, SMB
  • Mounting Type: Surface mount
  • REACH: Unaffected
  • ECCN: EAR99
