Same model may have multiple batches, images only for reference.

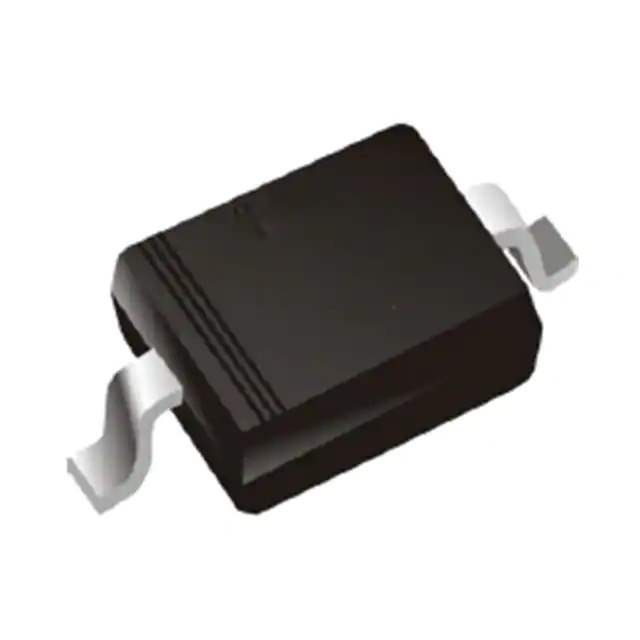

SD03 Real Image
Same model may have multiple batches, images only for reference.

SD03

Part No SD03
Manufacturer MDD
Catalog TVS - Diodes
Description TVS DIODE3.3VWM 6.5VC SOD323
Datasheet
SD03 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr MDD
Series SOD-323
Package Tape & Reel
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 3.3V (Max)
Voltage - Breakdown (Min) 4V
Current - Peak Pulse (10/1000µs) 1A (8/20µs)
Power - Peak Pulse 350W
Power Line Protection Yes
Applications General Purpose
Capacitance @ Frequency 450pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case SOD-323
Supplier Device Package SOD-323
Standard Package 6,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 664578-SD03
Ultra Librarian 3D Model Ultra Librarian SD03 CAD Model

Description

The 664578-SD03 is a Zener type TVS diode designed for general-purpose applications.

  • Type: Zener TVS
  • Package: SOD-323
  • Reverse Standoff Voltage: 3.3V (maximum)
  • Minimum Breakdown Voltage: 4V
  • Peak Pulse Power: 350W
  • Channel: single unidirectional
  • Mounting: surface mountable
  • Capacitance: 450pF @ 1MHz
  • Peak Pulse Current: 1A (8/20μs)
  • Operating Temperature Range: -55°C to 150°C
  • Status: active
  • Manufacturer: MDD
