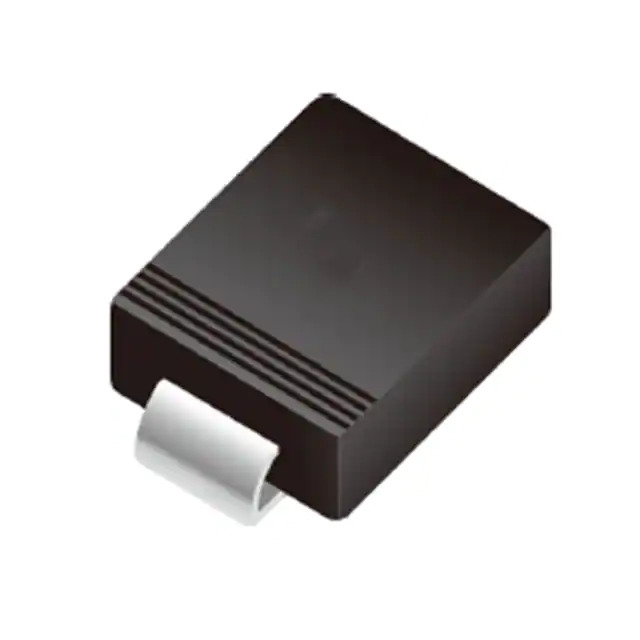

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr MDD
Series SMC
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 1000 V
Current - Average Rectified (Io) 6A
Voltage - Forward (Vf) (Max) @ If 1.15 V @ 6 A
Capacitance @ Vr, F 100pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case SOD-214AB, SMC
Supplier Device Package SMC
Operating Temperature - Junction -55°C ~ 150°C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1356095-S6MC
Ultra Librarian 3D Model Ultra Librarian S6MC CAD Model

Description

The 1356095-S6MC is a surface mount diode rectifier designed by MDD.

  • Series: SMC
  • Package: SOD-214AB
  • Voltage Rating: 1000V
  • Average Rectified Current: 6A
  • Operating Temperature: -55°C to 150°C
  • Application: Standard
  • Mounting Type: Surface Mount
  • Forward Voltage Drop: 1.15V @ 6A
