Same model may have multiple batches, images only for reference.

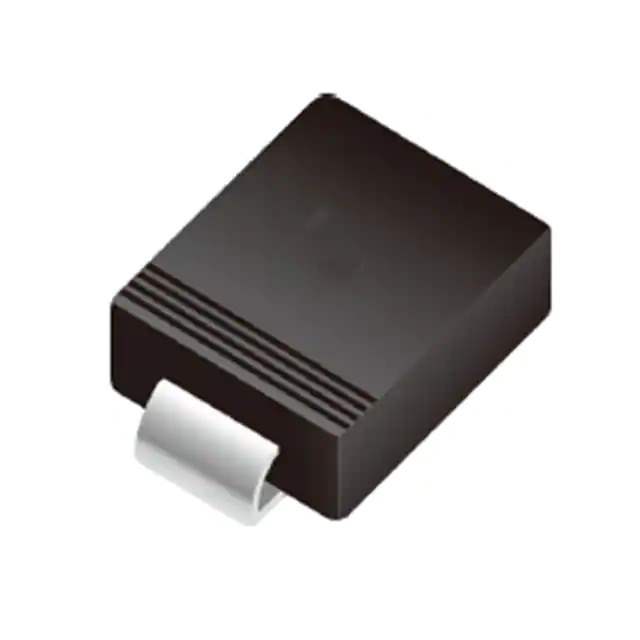

S3MC Real Image
Same model may have multiple batches, images only for reference.

S3MC

Part No S3MC
Manufacturer MDD
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 1KV 3A SMC
Datasheet
S3MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr MDD
Series SMC
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 1000 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 1 V @ 3 A
Capacitance @ Vr, F 40pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case SOD-214AB, SMC
Supplier Device Package SMC
Operating Temperature - Junction -55°C ~ 150°C
Standard Package 6,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 662725-S3MC
Ultra Librarian 3D Model Ultra Librarian S3MC CAD Model

Description

The 662725-S3MC electronic component is a single diode rectifier designed for discrete semiconductor applications from MDD.

  • Series: SMC
  • Package: Tape & Reel
  • Quantity: 6,000
  • Maximum DC Reverse Voltage: 1000V
  • Average Rectified Current: 3A
  • Operating Temperature: -55°C to 150°C
  • Category: Diodes - Rectifiers - Single
  • Product Status: Active
