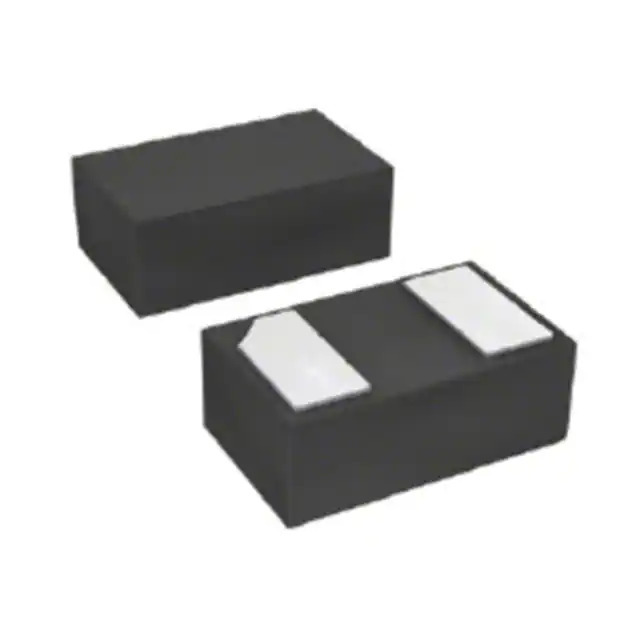

Same model may have multiple batches, images only for reference.
ESD1201OC MDD
Same model may have multiple batches, images only for reference.

ESD1201OC

Part No ESD1201OC
Manufacturer MDD
Catalog TVS - Diodes
Description TVS DIODE 12VWM 19VC DFN1006 / Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount DFN1006
Datasheet
ESD1201OC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr MDD
Series DFN1006
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 12V (Max)
Voltage - Breakdown (Min) 13.3V
Current - Peak Pulse (10/1000µs) 1A (8/20µs)
Power - Peak Pulse 150W
Power Line Protection Yes
Applications General Purpose
Capacitance @ Frequency 15pF @ 1MHz
Temperature Range - Operating -55°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case DFN1006
Supplier Device Package DFN1006
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1362205-ESD1201OC
Ultra Librarian 3D Model Ultra Librarian ESD1201OC CAD Model

Description

The MDD TVS Diode is a high-quality electronic component designed for circuit protection against transient voltage surges.

  • Voltage Reverse Standoff: 12V (max)
  • Voltage Breakdown: 13.3V
  • Power Peak Pulse: 150W
  • Mounting: Surface Mountable
  • Package: DFN1006
  • Product Status: Active
  • Feature: Power Line Protection
