Same model may have multiple batches, images only for reference.

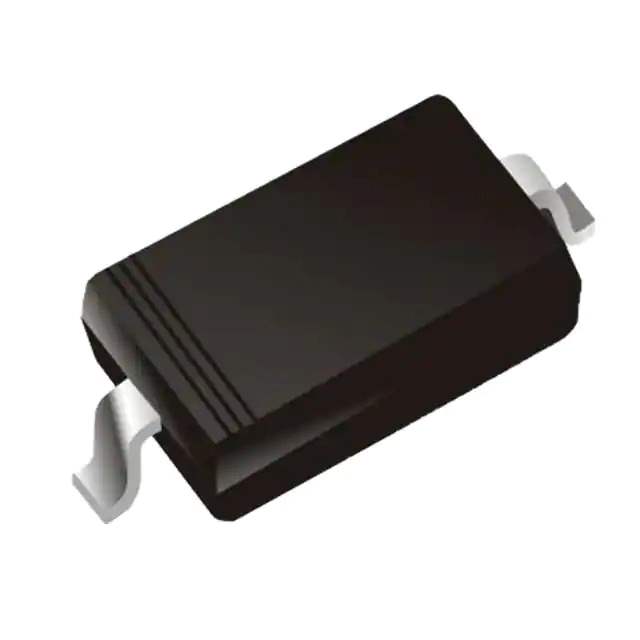

BZT52C27 Real Image
Same model may have multiple batches, images only for reference.

BZT52C27

Part No BZT52C27
Manufacturer MDD
Catalog Diodes - Zener - Single
Description Zener SOD-123 27V +/-5%
Datasheet
BZT52C27 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Zener - Single Zener Diodes
Mfr MDD
Series SOD-123
Package Tape & Reel
Product Status Active
Tolerance ±5%
Power - Max 500 mW
Impedance (Max) (Zzt) 70 Ohms
Current - Reverse Leakage @ Vr 100 nA @ 21 V
Voltage - Forward (Vf) (Max) @ If 900 mV @ 10 mA
Temperature Range - Operating -65°C ~ 150°C
Mounting Type Surface Mount
Supplier Device Package SOD-123
Standard Package 12,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0050
Win Source Part Number 574603-BZT52C27
Ultra Librarian 3D Model Ultra Librarian BZT52C27 CAD Model

Description

The BZT52C27 is a single Zener diode designed for voltage regulation and protection in electronic circuits.

  • Manufacturer: MDD
  • Power Dissipation: 500mW
  • Voltage Tolerance: ±5%
  • Forward Voltage Drop: 900mV @ 10mA
  • Reverse Leakage Current: 100nA @ Maximum Reverse Voltage
  • Impedance: 70 Ohms
  • Package: SOD-123
  • Operating Temperature Range: -65°C to 150°C
  • REACH Unaffected: Yes
  • Product Status: Active
